MS3112E8-3S

Active

ITT Cannon, LLC

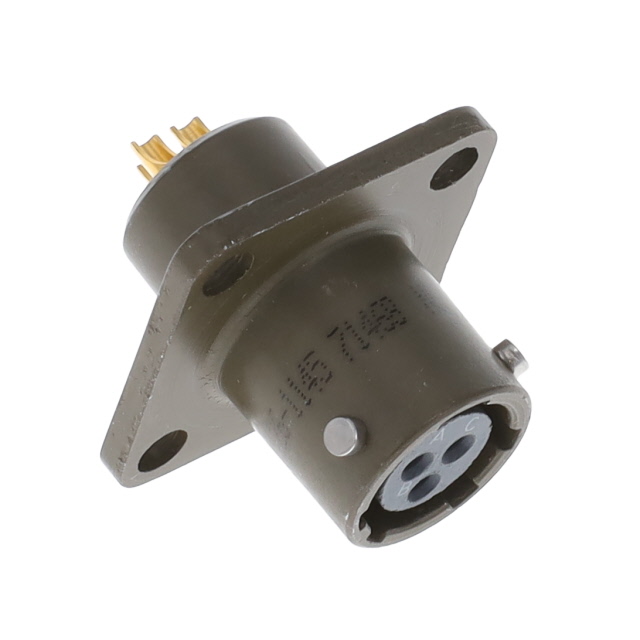

CIRCULAR CONNECTOR, MIL-DTL-26482 SERIES I, MS3112 SERIES, BOX MOUNT RECEPTACLE, 3 CONTACTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

Connectors, Interconnects

MS3112E8-3S

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, MIL-DTL-26482 SERIES I, MS3112 SERIES, BOX MOUNT RECEPTACLE, 3 CONTACTS

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3112E8-3S

Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	50 µin
Contact Finish Thickness - Mating	1.27 µm
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Ingress Protection	Environment Resistant
Mounting Feature	Flange
Mounting Type	Panel Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 C
Orientation	N (Normal)
Primary Material	Metal
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	8-3
Voltage Rating	600 VAC
Voltage Rating	850 VDC

MS3112E8 Series

Part	Fastening Type	Mounting Feature	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert	Mounting Type	Shell Finish	Shell Material	Primary Material	Color	Current Rating (Amps)	Ingress Protection	Connector Type	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Voltage Rating	Orientation
ITT Cannon, LLC MS3112E8-3S	Bayonet Lock	Flange	50 µin	1.27 µm	8-3	Panel Mount	Olive Drab Cadmium	Aluminum Alloy	Metal	Olive Drab	7.5 A	Environment Resistant	Receptacle Female Sockets	Gold	-55 C	125 °C	600 VAC	850 VDC	N (Normal)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 42.53
		1	$ 35.89
		10	$ 32.90
		10	$ 31.43
		25	$ 29.84
		25	$ 30.07
		50	$ 27.78
		100	$ 25.91
		250	$ 23.71
	N/A	39	$ 72.71

Description

General part information

MS3112E8 Series

The MS3112E8-3S from ITT Cannon is MIL-DTL-26482 series I box mount receptacle with 3 contacts. MIL-DTL-26482 series I connectors are available in various shell styles and shell plating with 48hr, 500hr salt spray exposure. The unmated connectors and protective covers meet 48hrs exposure to MIL-STD-1344 method 1001 per MIL-DTL-26482. It has a well-proven electrical capability and is designed to withstand extreme shock, exposure and vibration.
