Specification	SNP32GHS0K2

Color	Black
Features	Heat Stabilized, Impact Resistant
Length [Max]	44.22 mm
Length [Max]	1.741 in
Length [Min]	27.3 mm
Length [Min]	1.075 in
Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 HB
Material Thickness	1.75 mm
Material Thickness	0.069 "
Opening Size [Max]	36.47 mm
Opening Size [Max]	1.436 in
Opening Size [Min]	1.245 in
Opening Size [Min]	31.62 mm
Type	Clamp, Hose
Type Attributes	Push-Fit
Width	7.36 mm
Width [y]	0.29 in

SNP32G Series

Part	Material Flammability Rating	Color	Opening Size [Min]	Opening Size [Max]	Opening Size [Max]	Opening Size [Min]	Features	Type	Width	Width [y]	Material	Material Thickness	Material Thickness	Length [Min]	Length [Max]	Length [Min]	Length [Max]	Type Attributes

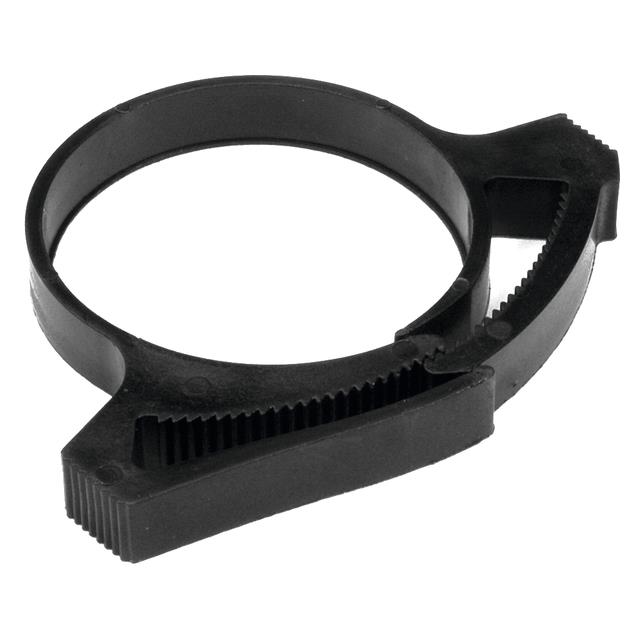

HELLERMANNTYTON SNP32GHS0H4	UL94 HB	Black	1.245 in	36.47 mm	1.436 in	31.62 mm	Heat Stabilized Impact Resistant	Clamp Hose	7.36 mm	0.29 in	Polyamide (PA66) Nylon 6/6 Glass Filled	1.75 mm	0.069 "	27.3 mm	44.22 mm	1.075 in	1.741 in	Push-Fit
HELLERMANNTYTON SNP32GHS0K2	UL94 HB	Black	1.245 in	36.47 mm	1.436 in	31.62 mm	Heat Stabilized Impact Resistant	Clamp Hose	7.36 mm	0.29 in	Polyamide (PA66) Nylon 6/6 Glass Filled	1.75 mm	0.069 "	27.3 mm	44.22 mm	1.075 in	1.741 in	Push-Fit
