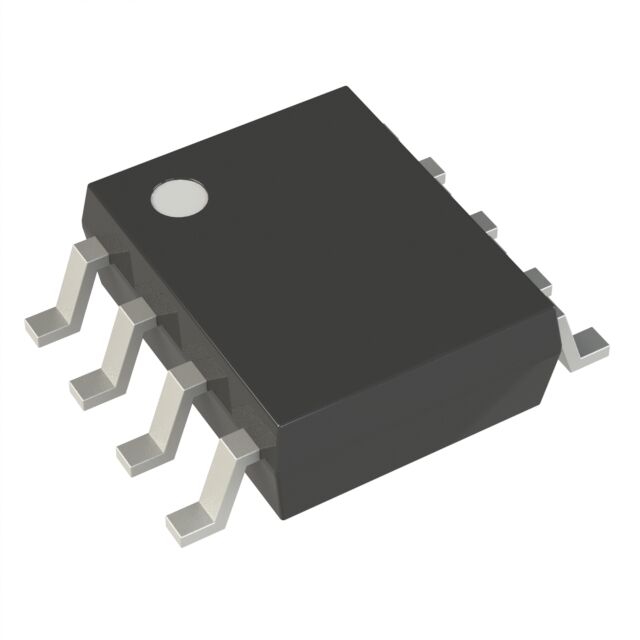

SLVU2.8-4.TBT

Active

ESD PROTECTION DEVICE, TVS, 15 V, SOIC, 8 PINS, 2.8 V, 400 W

Search across all available documentation for this part.

Circuit Protection

Active

ESD PROTECTION DEVICE, TVS, 15 V, SOIC, 8 PINS, 2.8 V, 400 W

Technical Specifications

Parameters and characteristics for this part

Specification	SLVU2.8-4.TBT

Applications	General Purpose
Capacitance @ Frequency	1 MHz, 5 pF
Current - Peak Pulse (10/1000µs)	24 A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 ░C
Package / Case	0.154 in
Package / Case	8-SOIC
Package / Case	3.9 mm
Power - Peak Pulse	400 W
Power Line Protection	False
Supplier Device Package	8-SO
Type	Zener
Unidirectional Channels [custom]	4
Voltage - Breakdown (Min) [Min]	3 V
Voltage - Clamping (Max) @ Ipp [Max]	15 V
Voltage - Reverse Standoff (Typ)	2.8 V

Part	Voltage - Reverse Standoff (Typ)	Power - Peak Pulse	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Current - Peak Pulse (10/1000µs)	Applications	Type	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Breakdown (Min) [Min]	Supplier Device Package	Capacitance @ Frequency	Unidirectional Channels [custom]	Mounting Type	Qualification	Grade	Package / Case	Package / Case
Semtech Corporation SLVU2.8.TCT	2.8 V	400 W	SC-59 SOT-23-3 TO-236-3	-55 ░C	125 °C	24 A	Ethernet	Zener	12.5 V	3 V	SOT-23-3	1 MHz 5 pF	1	Surface Mount
Semtech Corporation SLVU2.8Q.TCT	2.8 V	400 W	SC-59 SOT-23-3 TO-236-3	-40 °C	85 °C	24 A		Zener	12.5 V	3.2 V	SOT-23-3	40 pF	1	Surface Mount	AEC-Q100	Automotive
Semtech Corporation SLVU2.8-4.TBT	2.8 V	400 W	8-SOIC	-55 ░C	125 °C	24 A	General Purpose	Zener	15 V	3 V	8-SO	1 MHz 5 pF	4	Surface Mount			0.154 in	3.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15V Clamp 24A (8/20µs) Ipp Tvs Diode Surface Mount 8-SO
