Technical Specifications
Parameters and characteristics for this part
| Specification | IMA-S1000-48-YYPLI |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CCC, CE, cURus |
| Current - Output 1 | 21 A |
| Efficiency | 94 % |
| Features | Standby Output, Universal Input, Load Sharing, Remote Sense, Adjustable Output, PMBus™, Remote On/Off, PFC, DC Input Capable |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 1 kW |
| Size / Dimension [x] | 8.25 " |
| Size / Dimension [x] | 209.6 mm |
| Size / Dimension [y] | 5 in |
| Size / Dimension [y] | 5 in |
| Size / Dimension [z] | 40.6 mm |
| Size / Dimension [z] | 1.6 " |
| Type | Enclosed |
| Voltage - Input [Max] | 275 VAC, 300 V |
| Voltage - Input [Min] | 120 VDC, 80 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 328.87 | |
| 7 | $ 318.59 | |||
| 14 | $ 308.32 | |||
| 28 | $ 298.04 | |||
| N/A | 46 | $ 351.19 | ||
Description
General part information

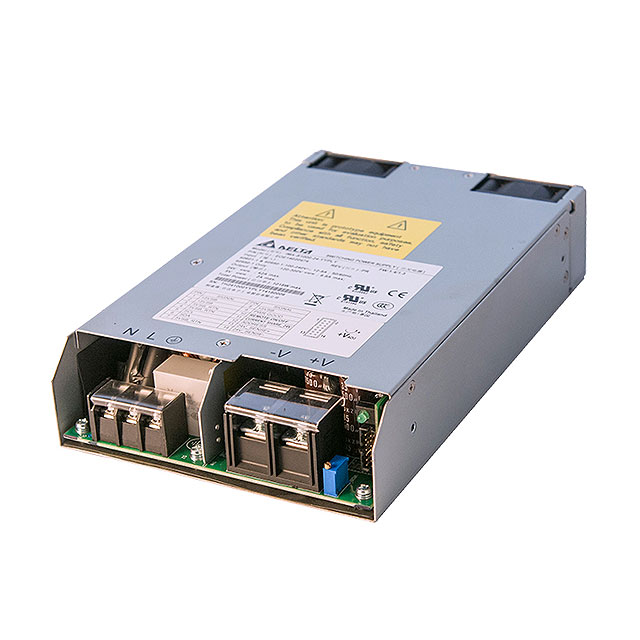

IMA-S1000 Series
Enclosed AC DC Converters 1 Output 48V 80 ~ 275 VAC, 120 ~ 300 VDC Input
