Optoelectronics
PM5GDW12.0
ActiveBivar Inc.

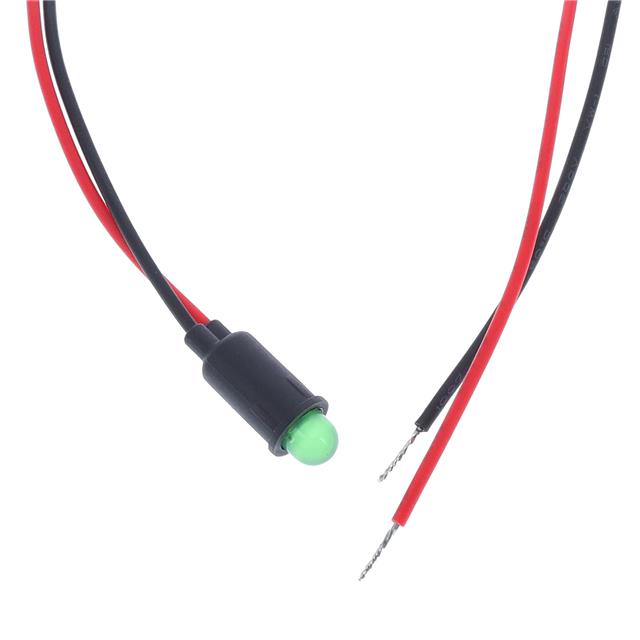

LED PANEL MOUNT INDICATOR, GREEN, 2.1 VDC, 6.35 MM, 30 MA, 25 MCD, NOT RATED
Deep-Dive with AI
Search across all available documentation for this part.
Optoelectronics
PM5GDW12.0
ActiveBivar Inc.
LED PANEL MOUNT INDICATOR, GREEN, 2.1 VDC, 6.35 MM, 30 MA, 25 MCD, NOT RATED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PM5GDW12.0 |
|---|---|
| Current | 30 mA |
| Lamp Color | Green |
| Lens Color | Green |
| Lens Size | T-1 3/4 |
| Lens Size | 5 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 25 mcd |
| Panel Cutout Dimensions | 6.35 mm |
| Panel Cutout Dimensions | 0.25 " |
| Panel Cutout Shape | Round |
| Termination Style | Wire Leads - 12" (304.80mm) |
| Type | LED |
| Viewing Angle | 45 ° |
| Voltage | 2.1 V |
| Wavelength - Peak | 568 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PM5GDW12.0 Series
LED Panel Indicator Green Diffused 45° 2.1V 30mA Wire Leads - 12" (304.80mm)
