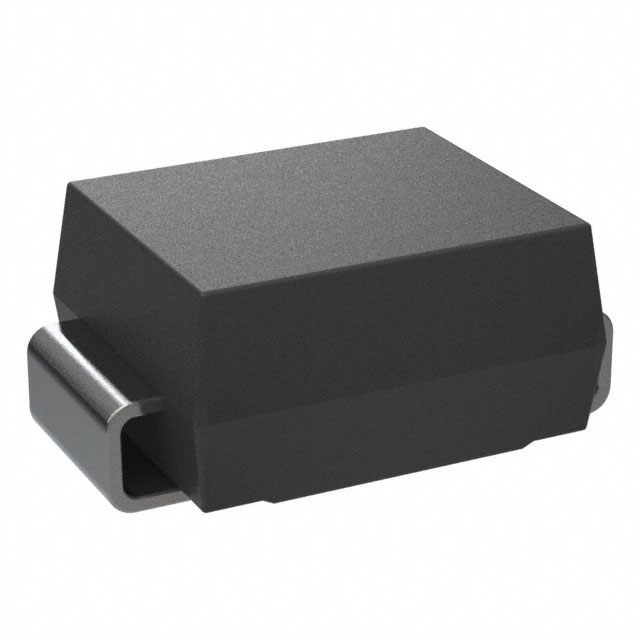

SMBJ24CA

Active
Semtech Corporation

DIODE TVS SINGLE BI-DIR 24V 600W 2-PIN DO-214AA T/R

Deep-Dive with AI

Search across all available documentation for this part.

DO-214AA
Circuit Protection

SMBJ24CA

Active
Semtech Corporation

DIODE TVS SINGLE BI-DIR 24V 600W 2-PIN DO-214AA T/R

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

SpecificationSMBJ24CA
ApplicationsTelecom
Bidirectional Channels [custom]1
Current - Peak Pulse (10/1000µs)15.4 A
Mounting TypeSurface Mount
Operating Temperature [Max]175 °C
Operating Temperature [Min]-55 °C
Package / CaseSMB, DO-214AA
Power - Peak Pulse600 W
Power Line ProtectionFalse
Supplier Device PackageDO-214AA (SMB)
TypeZener
Voltage - Breakdown (Min) [Min]26.7 V
Voltage - Clamping (Max) @ Ipp [Max]38.9 V
Voltage - Reverse Standoff (Typ)24 V
