Fans, Blowers, Thermal Management
7-340-2PP-BA
ActiveCTS Thermal Management Products

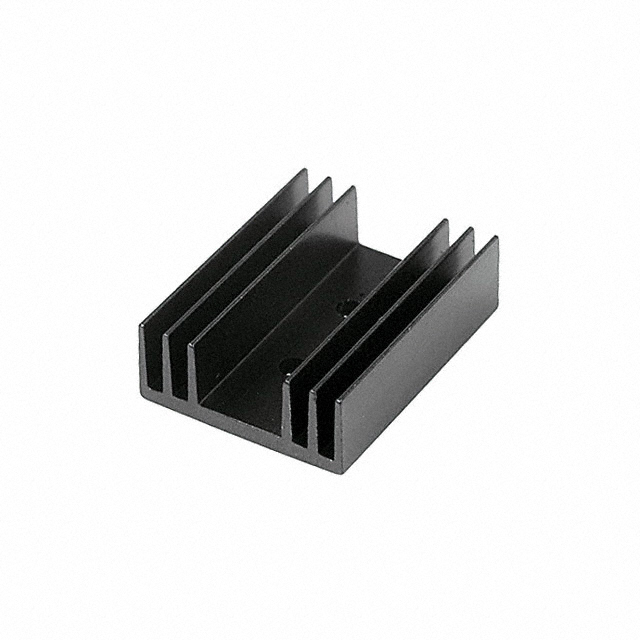

HEATSINK PWR DUAL BLACK TO-220
Fans, Blowers, Thermal Management
7-340-2PP-BA
ActiveCTS Thermal Management Products
HEATSINK PWR DUAL BLACK TO-220
Technical Specifications
Parameters and characteristics for this part
| Specification | 7-340-2PP-BA |
|---|---|
| Attachment Method | Bolt On |
| Fin Height | 0.46 in |
| Length | 1.5 in |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Package Cooled | TO-220 |
| Power Dissipation | 9 W |
| Shape | Fins, Rectangular |
| Thermal Resistance | 6.67 °C/W |
| Type | Board Level |
| Width | 1.15 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 4.02 | <5d |
| 10 | $ 3.56 | |||
| 25 | $ 3.39 | |||
| 50 | $ 3.27 | |||
| 100 | $ 3.15 | |||
| 250 | $ 3.00 | |||
| 500 | $ 2.89 | |||
| 1000 | $ 2.79 | |||
CAD
3D models and CAD resources for this part
Description
General part information
7-340-2 Series
Heat Sink TO-220 Aluminum 9.0W @ 60°C Board Level
Documents
Technical documentation and resources
