Power Supplies - External/Internal (Off-Board)

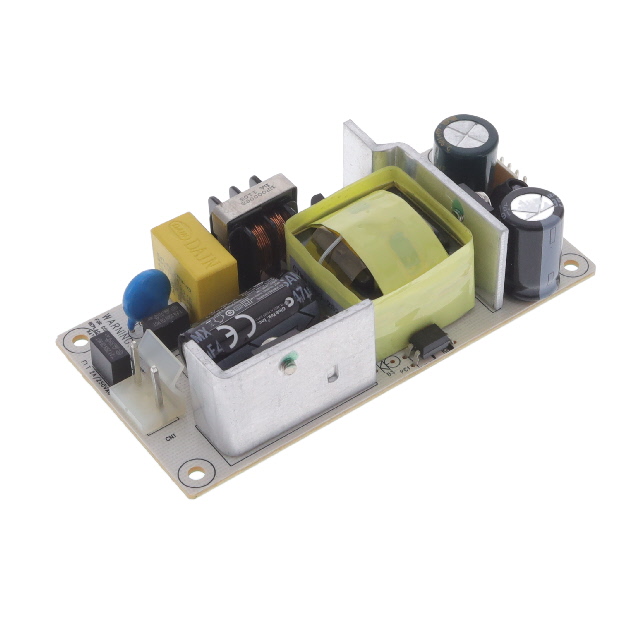

GTM410602524FWIM(RE)

Active

AC/DC CONVERTER 24V 25W

Search across all available documentation for this part.

Power Supplies - External/Internal (Off-Board)

Active

AC/DC CONVERTER 24V 25W

Technical Specifications

Parameters and characteristics for this part

Specification	GTM410602524FWIM(RE)

Applications	ITE (Commercial), Medical
Approval Agency	VCCI, CE, cUR, NEMKO, CB, FCC, UkrSEPRO, cURus, GOST-R
Current - Output 1	1.04 A
Efficiency	80 %
Features	Adjustable Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Power (Watts)	25 W
Size / Dimension [x]	3.86 "
Size / Dimension [x]	98 mm
Size / Dimension [y]	50 mm
Size / Dimension [y]	1.97 in
Size / Dimension [z]	1.1 in
Size / Dimension [z]	28 mm
Standard Number	60601-1, 60950-1
Type	Open Frame
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Output 1	24 V

Part	Minimum Load Required	Current - Output 1	Standard Number	Mounting Type	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Efficiency	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Number of Outputs	Features	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Type	Approval Agency	Applications
GlobTek, Inc. GTM410602524FWIM(RE)		1.04 A	60601-1 60950-1	Chassis Mount	100 VAC	240 VAC	25 W	80 %	50 mm	1.97 in	3.86 "	1.1 in	28 mm	98 mm	1	Adjustable Output	24 V	40 °C	0 °C	Open Frame	CB CE cUR cURus FCC GOST-R NEMKO UkrSEPRO VCCI	ITE (Commercial) Medical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 24V 100 ~ 240 VAC Input
