Cables, Wires - Management

SNP410C2

Active

HELLERMANNTYTON

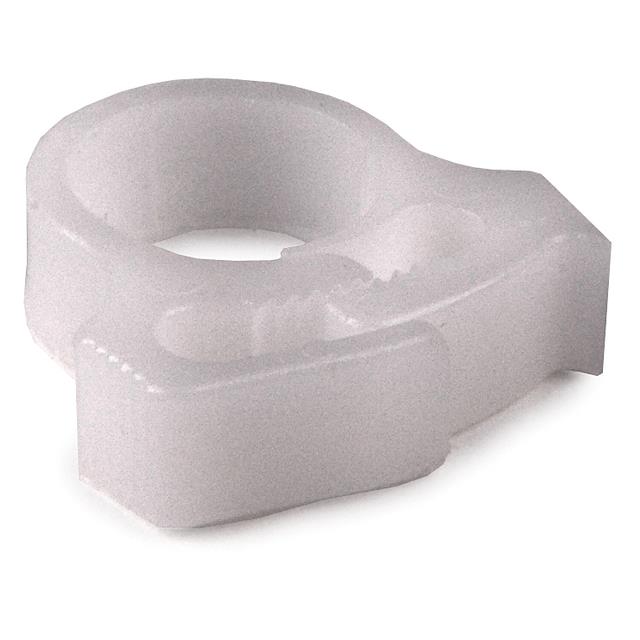

FASTENER, RELEASABLE, SNAPPER HOSE CLAMP, 10.69 MM, POLYACETAL, WHITE, 5.82 MM

Search across all available documentation for this part.

Cables, Wires - Management

Active

HELLERMANNTYTON

FASTENER, RELEASABLE, SNAPPER HOSE CLAMP, 10.69 MM, POLYACETAL, WHITE, 5.82 MM

Technical Specifications

Parameters and characteristics for this part

Specification	SNP410C2

Color	White
Length [Max]	0.749 in
Length [Max]	19.02 mm
Length [Min]	0.524 in
Length [Min]	13.31 mm
Material	Polyacetal (POM)
Material Flammability Rating	UL94 HB
Material Thickness	0.066 in
Material Thickness	1.68 mm
Opening Size [Max] [z]	0.452 in
Opening Size [Max] [z]	11.48 mm
Opening Size [Min] [z]	10.26 mm
Opening Size [Min] [z]	0.404 in
Type	Clamp, Hose
Type Attributes	Push-Fit
Width	5.92 mm
Width [x]	0.233 in

Part	Type Attributes	Opening Size [Max] [z]	Opening Size [Max] [z]	Opening Size [Min] [z]	Opening Size [Min] [z]	Material Flammability Rating	Type	Material Thickness	Material Thickness	Material	Length [Min]	Length [Max]	Length [Max]	Length [Min]	Width	Width [x]	Color
HELLERMANNTYTON SNP410M4	Push-Fit	0.452 in	11.48 mm	10.26 mm	0.404 in	UL94 HB	Clamp Hose	0.066 in	1.68 mm	Polyacetal (POM)	0.524 in	0.749 in	19.02 mm	13.31 mm	5.92 mm	0.233 in	White
HELLERMANNTYTON SNP410C2	Push-Fit	0.452 in	11.48 mm	10.26 mm	0.404 in	UL94 HB	Clamp Hose	0.066 in	1.68 mm	Polyacetal (POM)	0.524 in	0.749 in	19.02 mm	13.31 mm	5.92 mm	0.233 in	White
