Inductors, Coils, Chokes

SRR1050A-4R2Y

Active

Bourns Inc.

IND10.2X10X4.8MM,4.2UH30%6.1A,SHDSMD /TAPE & REEL - 13" REEL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

Inductors, Coils, Chokes

SRR1050A-4R2Y

Active

Bourns Inc.

IND10.2X10X4.8MM,4.2UH30%6.1A,SHDSMD /TAPE & REEL - 13" REEL

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRR1050A-4R2Y

Current - Saturation (Isat)	6.4 A
Current Rating (Amps)	6.1 A
DC Resistance (DCR)	14 mOhm
Frequency - Self Resonant	29 MHz
Height - Seated (Max) [Max] [z]	0.201 in
Height - Seated (Max) [Max] [z]	5.1 mm
Inductance	4.2 µH
Inductance Frequency - Test	100 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 C
Package / Case	Nonstandard
Ratings	AEC-Q200
Shielding	Shielded
Size / Dimension [x]	10.2 mm
Size / Dimension [x]	0.402 in
Size / Dimension [y]	10 mm
Size / Dimension [y]	0.394 in
Tolerance	30 %
Type	Drum Core, Wirewound

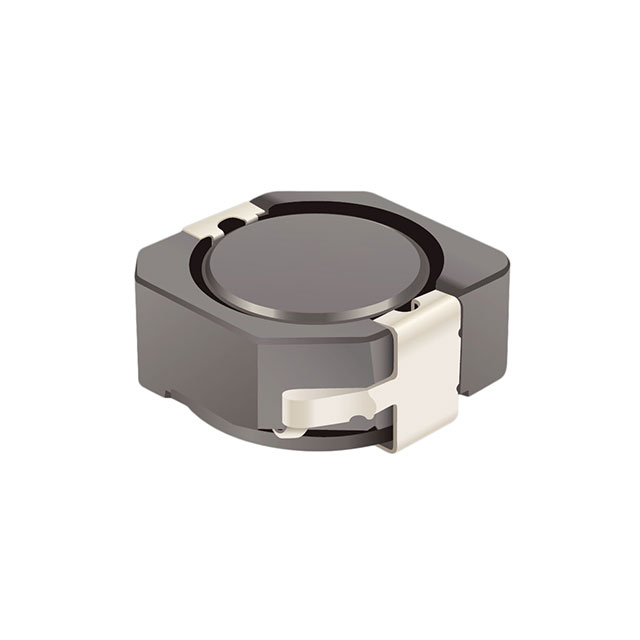

SRR1050A Series

Part	Type	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Shielding	Mounting Type	Inductance	DC Resistance (DCR)	Ratings	Current - Saturation (Isat)	Tolerance	Material - Core	Inductance Frequency - Test	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Frequency - Self Resonant	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	DC Resistance (DCR) [Max]
Bourns Inc. SRR1050A-181Y	Drum Core Wirewound	Nonstandard	0.201 in	5.1 mm	Shielded	Surface Mount	180 µH	420 mOhm	AEC-Q200	1.04 A	30 %	Ferrite	100 kHz	10 mm	10.2 mm	0.402 in	0.394 in	3.4 MHz	125 °C	-40 C	1 A
Bourns Inc. SRR1050A-150Y	Drum Core Wirewound	Nonstandard	0.201 in	5.1 mm	Shielded	Surface Mount	15 µH		AEC-Q200	3.6 A	30 %	Ferrite	100 kHz	10 mm	10.2 mm	0.402 in	0.394 in	14 MHz	125 °C	-40 C	3.4 A	47 mOhm
Bourns Inc. SRR1050A-820Y	Drum Core Wirewound	Nonstandard	0.201 in	5.1 mm	Shielded	Surface Mount	82 µH		AEC-Q200		30 %	Ferrite	100 kHz	10 mm	10.2 mm	0.402 in	0.394 in	4.5 MHz	125 °C	-40 C	1.45 A	230 mOhm
Bourns Inc. SRR1050A-1R2Y	Drum Core Wirewound	Nonstandard	0.201 in	5.1 mm	Shielded	Surface Mount	1.2 µH		AEC-Q200	10.5 A	30 %	Ferrite	100 kHz	10 mm	10.2 mm	0.402 in	0.394 in	85 MHz	125 °C	-40 C	8.3 Amps	7 mOhm
Bourns Inc. SRR1050A-2R2Y	Drum Core Wirewound	Nonstandard	0.201 in	5.1 mm	Shielded	Surface Mount	2.2 µH		AEC-Q200	8.2 A	30 %	Ferrite	100 kHz	10 mm	10.2 mm	0.402 in	0.394 in	53 MHz	125 °C	-40 C	7.2 A	9 mOhm
Bourns Inc. SRR1050A-390Y	Drum Core Wirewound	Nonstandard	0.201 in	5.1 mm	Shielded	Surface Mount	39 µH	106 mOhm	AEC-Q200	2.3 A	30 %	Ferrite	100 kHz	10 mm	10.2 mm	0.402 in	0.394 in	6.8 MHz	125 °C	-40 C	2.25 A
Bourns Inc. SRR1050A-101Y	Drum Core Wirewound	Nonstandard	0.201 in	5.1 mm	Shielded	Surface Mount	100 µH		AEC-Q200	1.35 A	30 %	Ferrite	100 kHz	10 mm	10.2 mm	0.402 in	0.394 in	4.2 MHz	125 °C	-40 C	1.35 A	255 mOhm
Bourns Inc. SRR1050A-151Y	Drum Core Wirewound	Nonstandard	0.201 in	5.1 mm	Shielded	Surface Mount	150 µH		AEC-Q200	1.12 A	30 %	Ferrite	100 kHz	10 mm	10.2 mm	0.402 in	0.394 in	3.6 MHz	125 °C	-40 C	1.1 A
Bourns Inc. SRR1050A-4R2Y	Drum Core Wirewound	Nonstandard	0.201 in	5.1 mm	Shielded	Surface Mount	4.2 µH	14 mOhm	AEC-Q200	6.4 A	30 %	Ferrite	100 kHz	10 mm	10.2 mm	0.402 in	0.394 in	29 MHz	125 °C	-40 C	6.1 A
Bourns Inc. SRR1050A-R68Y	Drum Core Wirewound	Nonstandard	0.201 in	5.1 mm	Shielded	Surface Mount	0.68 µH		AEC-Q200	13.5 A	30 %	Ferrite	100 kHz	10 mm	10.2 mm	0.402 in	0.394 in	110 MHz	125 °C	-40 C	9.5 A	5.5 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.18
		10	$ 1.00
		25	$ 0.91
		50	$ 0.85
		100	$ 0.71
		250	$ 0.65
	Digi-Reel®	1	$ 1.18
		10	$ 1.00
		25	$ 0.91
		50	$ 0.85
		100	$ 0.71
		250	$ 0.65
	N/A	559	$ 0.96
	Tape & Reel (TR)	700	$ 0.56
		1400	$ 0.52
		2100	$ 0.50
		3500	$ 0.47
		4900	$ 0.45
		7000	$ 0.45
Newark	Each (Supplied on Cut Tape)	500	$ 0.71

Description

General part information

SRR1050A Series

4.2 µH Shielded Drum Core, Wirewound Inductor 6.1 A 14mOhm Max Nonstandard

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet
