Technical Specifications
Parameters and characteristics for this part
| Specification | L59UD-R24-W |
|---|---|
| Current | 20 mA |
| Lamp Color | Red |
| Lens Color | Red |
| Lens Size [diameter] | 5.08 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 10 mcd |
| Panel Cutout Dimensions [x] | 6.35 mm |
| Panel Cutout Dimensions [x] | 0.25 in |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Type | LED |
| Viewing Angle | 60 ° |
| Voltage | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 7.67 | |
| 10 | $ 5.57 | |||
| 100 | $ 4.60 | |||
| 500 | $ 4.03 | |||
| 1000 | $ 3.81 | |||
| 2000 | $ 3.72 | |||
| N/A | 136 | $ 8.01 | ||
Description
General part information
L59UD-R24 Series

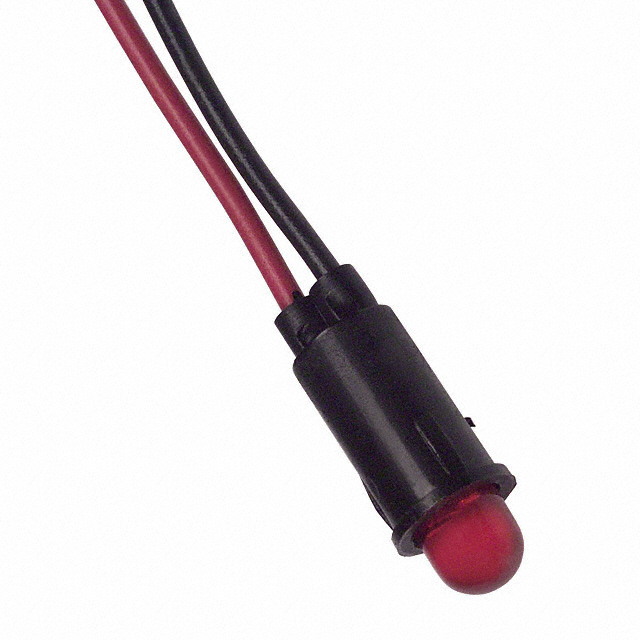

LED Panel Indicator Red Diffused 60° 24V 20mA Wire Leads - 6" (152.40mm)
