Switches

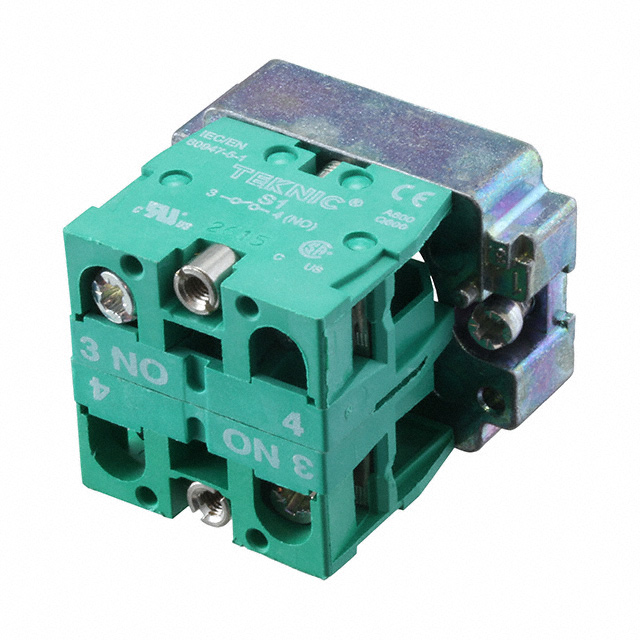

S1-20WB

Active

CONTACT BLOCK SPST-NOX2 10A 600V

Search across all available documentation for this part.

Switches

Active

CONTACT BLOCK SPST-NOX2 10A 600V

Technical Specifications

Parameters and characteristics for this part

Specification	S1-20WB

Circuit	SPST-NO x 2
Compatible Series	Altech
Compatible Series Dimension	22 mm
Contact Rating (Current)	10 A
Requires	Switch Body
Termination Style	Screw Terminal

S1 Series

Part	Contact Rating (Current)	Circuit	Compatible Series Dimension	Compatible Series	Termination Style	Requires
Altech Corporation S1E	10 A	SPST-NO	22 mm	Altech	Screw Terminal	Switch Body
Altech Corporation S1-20WB	10 A	SPST-NO x 2	22 mm	Altech	Screw Terminal	Switch Body
Altech Corporation S1-10WB	10 A	SPST-NO	22 mm	Altech	Screw Terminal	Switch Body

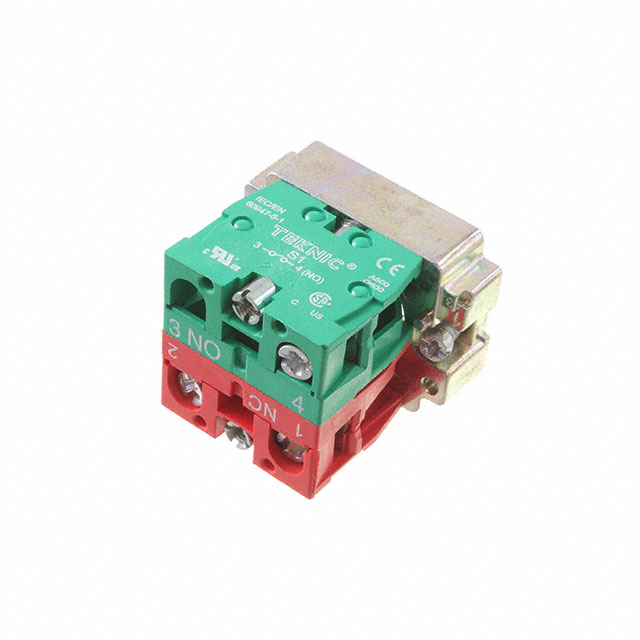

Altech Corporation S1-S2-WB	10 A	SPST-NC SPST-NO	22 mm	Altech	Screw Terminal	Switch Body

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$	Updated

Digikey	Bulk	1	$ 12.98	<1d

3D models and CAD resources for this part

General part information

Configurable Contact Block SPST-NO x 2 10A @ 600VAC

Technical documentation and resources

No documents available
