Connectors, Interconnects

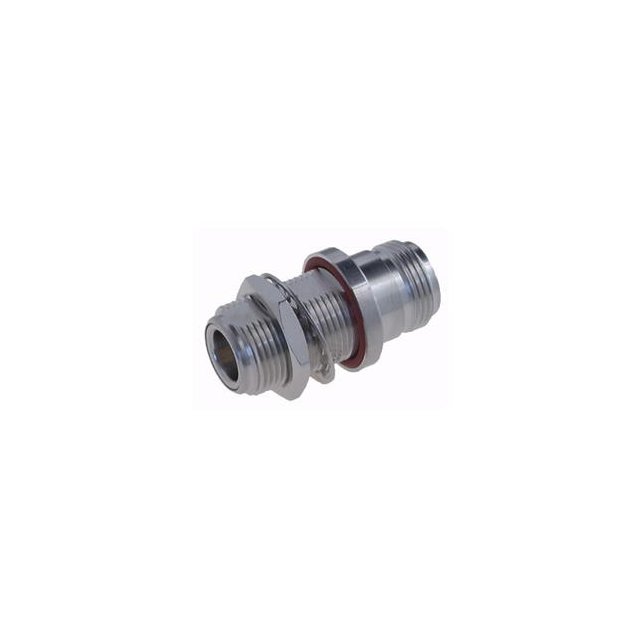

34_N-50-0-3/133_NE
ActiveHuber+Suhner, Inc.
CONN TYPE N ADAPTER 0HZ TO 18GHZ 50OHM ST PANEL MOUNT RCP/RCP GOLD OVER NICKEL SINGLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 34_N-50-0-3/133_NE |
|---|---|
| Adapter Series | N to N |
| Adapter Type | Jack to Jack |
| Body Finish | White Bronze |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | Female Socket, N Jack |
| Convert To (Adapter End) | N Jack, Female Socket |
| Frequency - Max [Max] | 18 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead |
| Mounting Type | Panel Mount |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 104.08 | |
| 10 | $ 95.51 | |||
| 25 | $ 91.84 | |||
| 50 | $ 88.78 | |||
| 100 | $ 83.88 | |||
| N/A | 2 | $ 105.38 | ||
Description
General part information
34_N-50 Series
Adapter Coaxial Connector N Jack, Female Socket To N Jack, Female Socket 50 Ohms
