Specification	1-2343404-1

Connector Type	Base - Panel Mount
Contact Finish	Tin
Contact Material	Brass
Current Rating (Amps)	5 A
Housing Color	Gray
Housing Material	Polybutylene Terephthalate (PBT)
Mounting Type	PCB
Number of Positions	4
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Style	Board to Cable/Wire
Voltage Rating	250 VDC

LUMAWISE Endurance S Series

LED Lighting Mounting Accessories LUMAWISE Endurance S 40mm, Keyed Base

Part	Ingress Protection	Number of Positions	Housing Material	Connector Type	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Wire Gauge [Min]	Wire Gauge [Max]	Style	Current Rating (Amps)	Contact Material	For Use With/Related Products	Accessory Type	Voltage Rating	Mounting Type

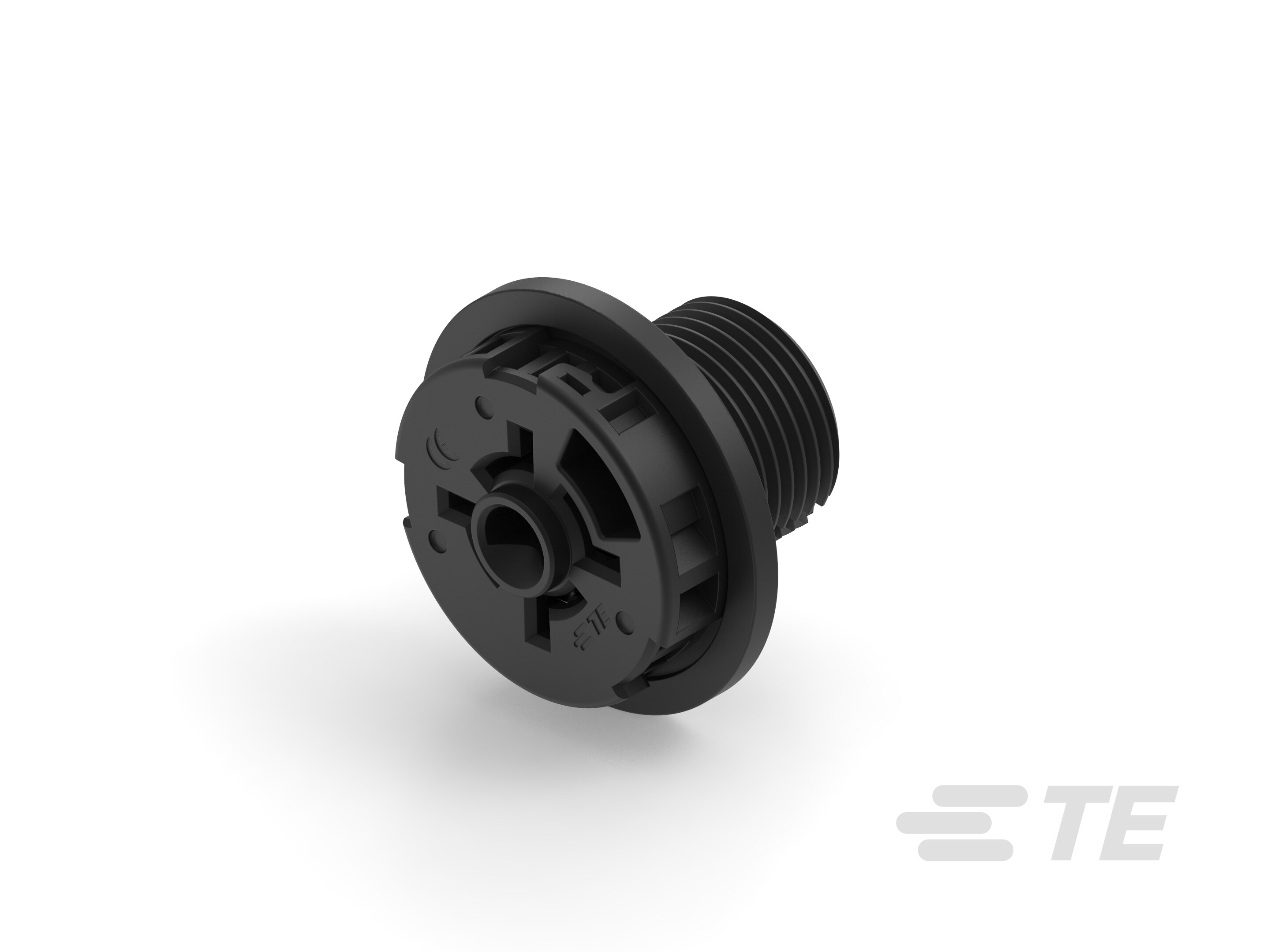

TE Connectivity Raychem Cable Protection 2363638-6
TE Connectivity Raychem Cable Protection 4-2328823-3
TE Connectivity Raychem Cable Protection 4-2328823-1

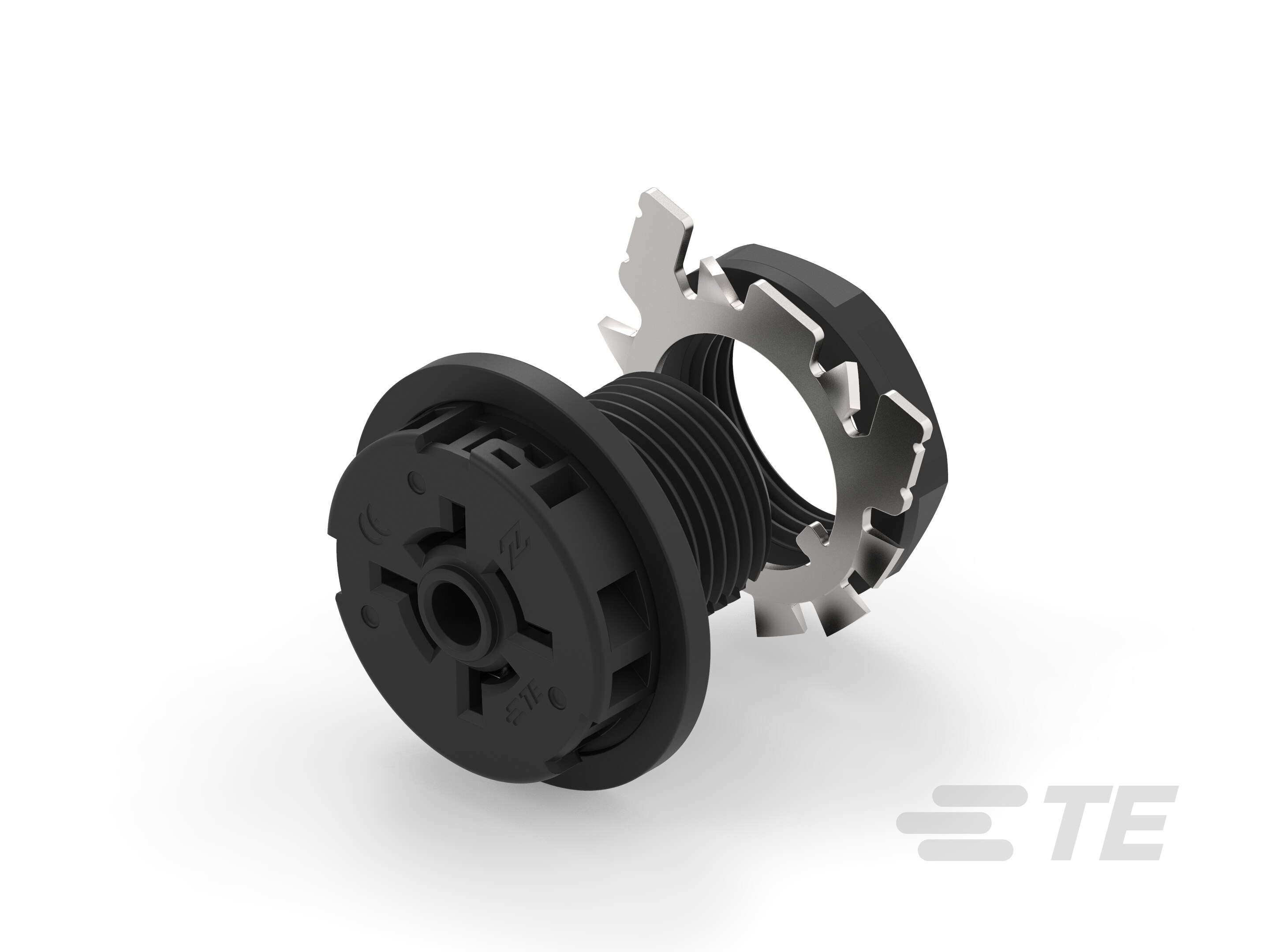

TE Connectivity Raychem Cable Protection 1-2363638-1	IP66	4	Polybutylene Terephthalate (PBT)	Receptacle	Tin	90 °C	-40 °C	Black	17.5 AWG	20 AWG	Board to Cable/Wire	1.5 A	Copper Alloy

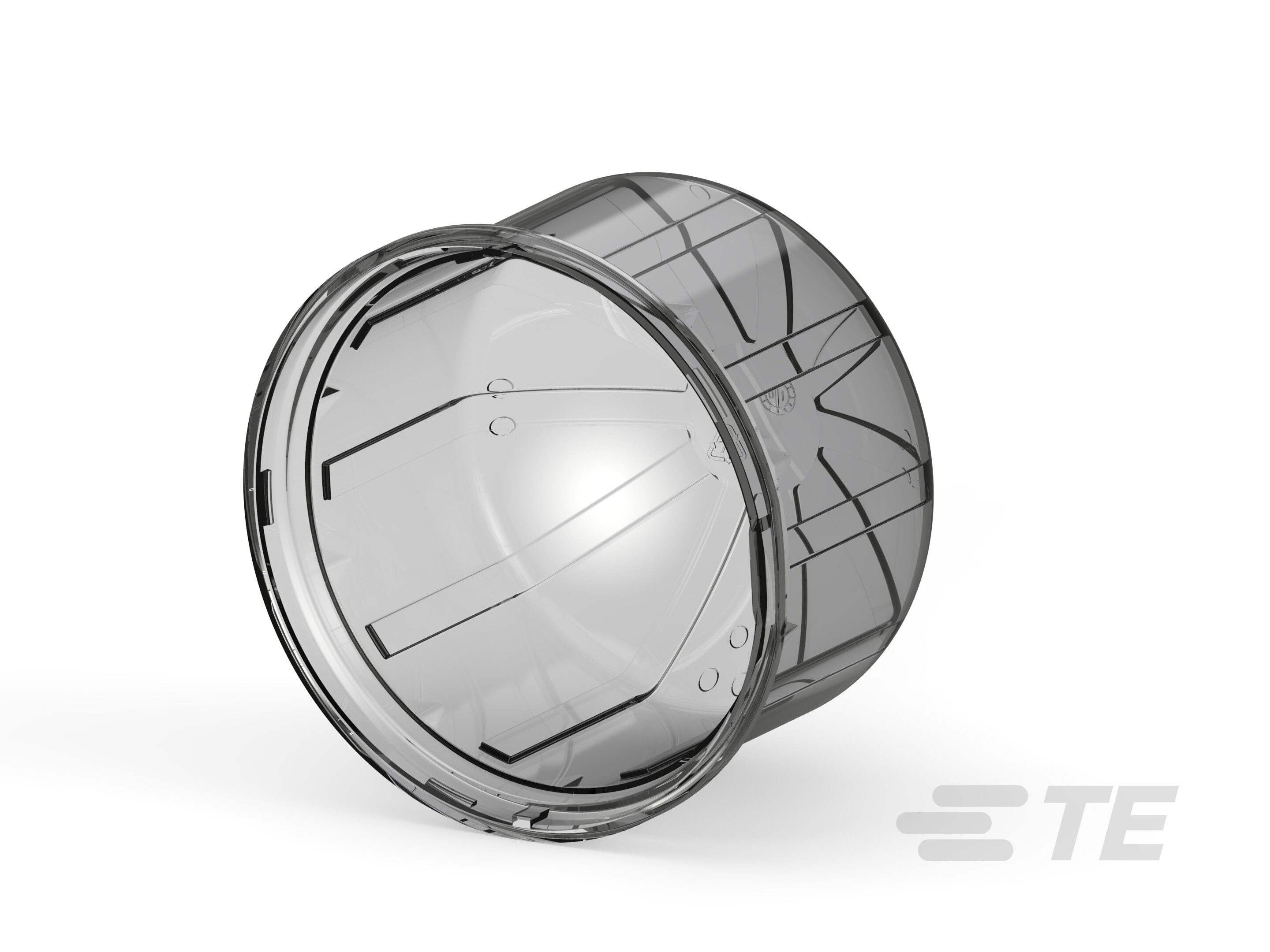

TE Connectivity Raychem Cable Protection 2-2328823-3														LUMAWISE Endurance S Domes	Lens

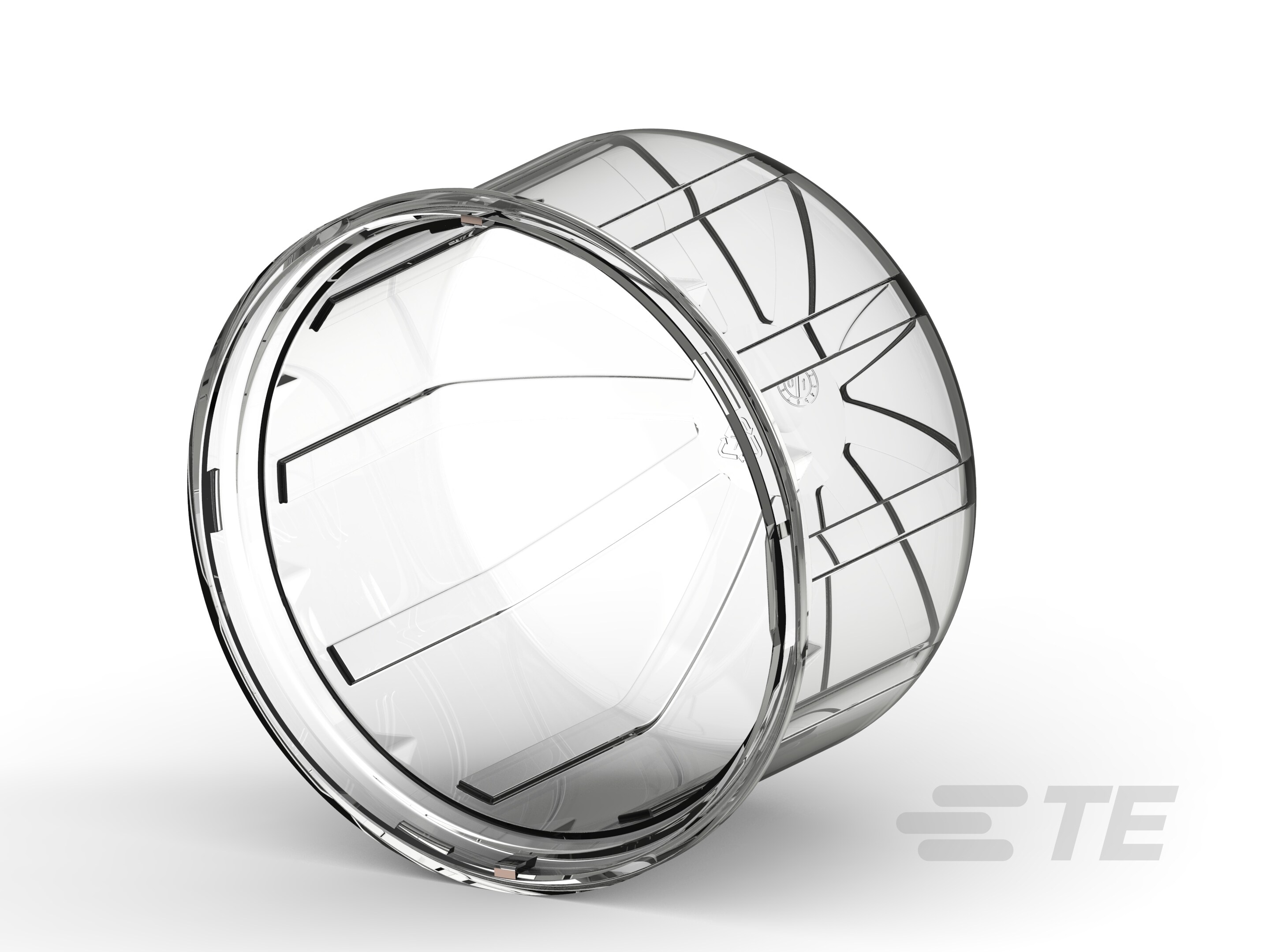

TE Connectivity Raychem Cable Protection 1-2328823-3														LUMAWISE Endurance S Series	Lens

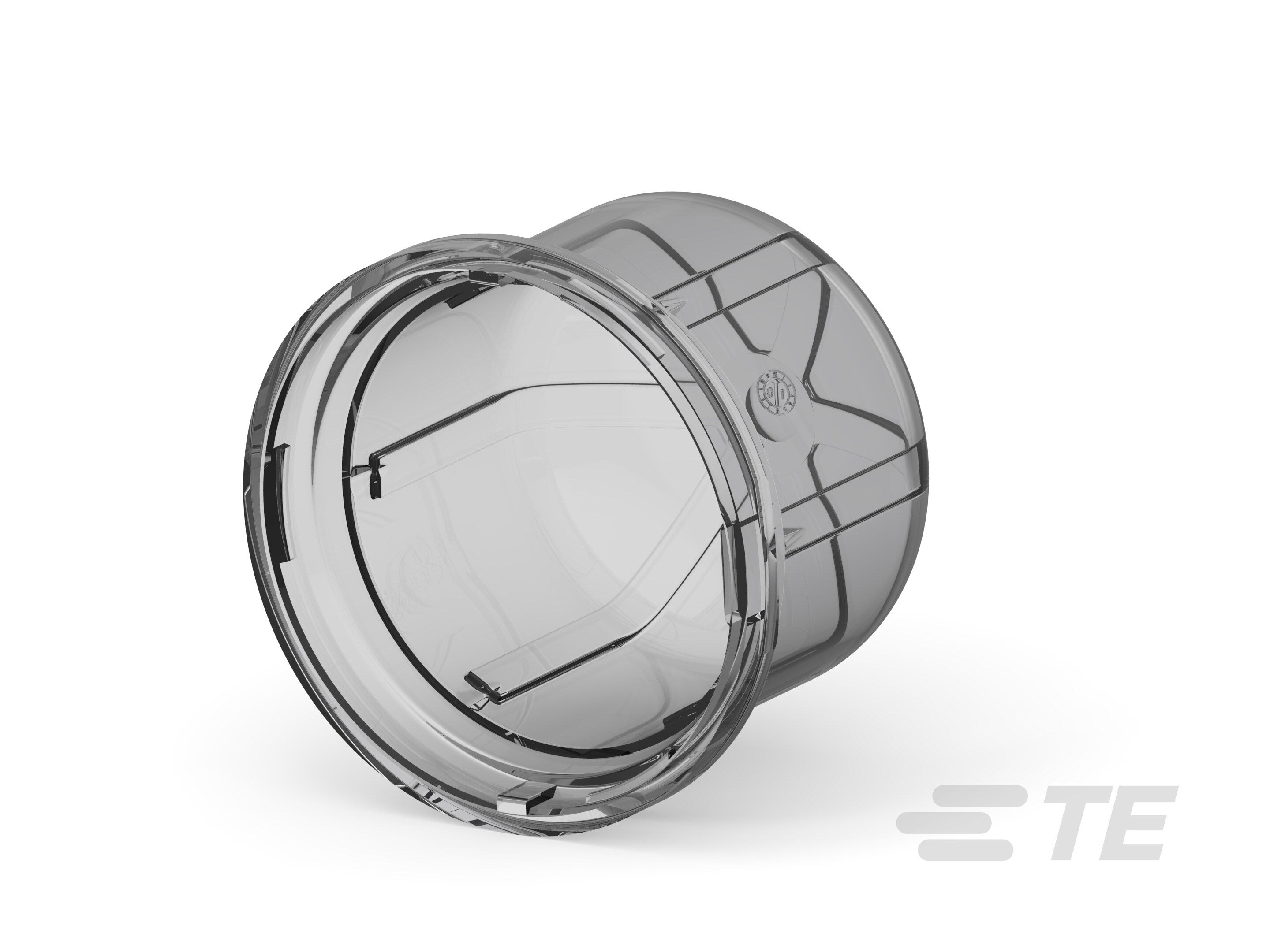

TE Connectivity Raychem Cable Protection 2329013-2														LUMAWISE Endurance S Series	Lens
TE Connectivity Raychem Cable Protection 2-2328823-2
TE Connectivity Raychem Cable Protection 1-2328823-2														LUMAWISE Endurance S Series	Lens
TE Connectivity Raychem Cable Protection 1-2343404-1		4	Polybutylene Terephthalate (PBT)	Base - Panel Mount	Tin	90 °C	-40 °C	Gray			Board to Cable/Wire	5 A	Brass			250 VDC	PCB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting Mounting Accessories LUMAWISE Endurance S 40mm, Keyed Base
