Switches

45-2234.11G0.000

Active

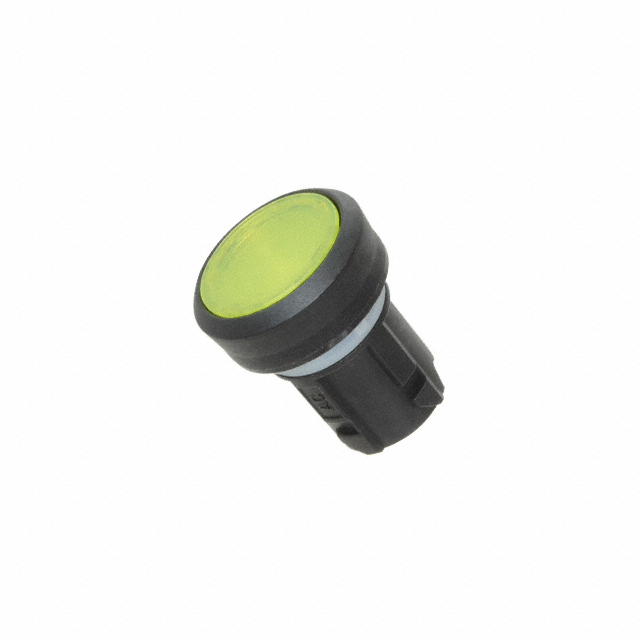

ILLUMINATED PUSHBUTTON ACTUATOR YELLOW TRANSPARENT LENS LEVEL WITH FRONT RING MAINTAIN FRONT/HOUSING PLASTIC

Search across all available documentation for this part.

Switches

Active

ILLUMINATED PUSHBUTTON ACTUATOR YELLOW TRANSPARENT LENS LEVEL WITH FRONT RING MAINTAIN FRONT/HOUSING PLASTIC

Technical Specifications

Parameters and characteristics for this part

Specification	45-2234.11G0.000

(Select First, Then Apply Filters) Compatible Series	EAO, 45
Actuator Type	Round, Pushbutton
Illumination	Illuminated - Yellow
Panel Cutout Dimensions [diameter]	22.3 mm
Requires	Contact Block(s), Illumination Source
Type	Maintained

45-2234 Series

Part	Panel Cutout Dimensions [diameter]	Requires	(Select First, Then Apply Filters) Compatible Series	Illumination	Type	Actuator Type
EAO 45-2234.21E0.000	22.3 mm	Contact Block(s) Illumination Source	45 EAO	Illuminated - Red	Maintained	Pushbutton Round
EAO 45-2234.21J0.000	22.3 mm	Contact Block(s) Illumination Source	45 EAO	Illuminated - Blue	Maintained	Pushbutton Round
EAO 45-2234.11K0.000	22.3 mm	Contact Block(s) Illumination Source	45 EAO	Illuminated	Maintained	Pushbutton Round
EAO 45-2234.21G0.000	22.3 mm	Contact Block(s) Illumination Source	45 EAO	Illuminated - Yellow	Maintained	Pushbutton Round
EAO 45-2234.4FH0.000	30.5 mm	Contact Block(s) Illumination Source	45 EAO	Illuminated - Green	Maintained	Pushbutton Round
EAO 45-2234.4FK0.000	30.5 mm	Contact Block(s) Illumination Source	45 EAO	Illuminated	Maintained	Pushbutton Round
EAO 45-2234.11H0.000	22.3 mm	Contact Block(s) Illumination Source	45 EAO	Illuminated - Green	Maintained	Pushbutton Round
EAO 45-2234.31K0.000	22.3 mm	Contact Block(s) Illumination Source	45 EAO	Illuminated	Maintained	Pushbutton Round
EAO 45-2234.11G0.000	22.3 mm	Contact Block(s) Illumination Source	45 EAO	Illuminated - Yellow	Maintained	Pushbutton Round
EAO 45-2234.11N0.000	22.3 mm	Contact Block(s) Illumination Source	45 EAO	Illuminated - White	Maintained	Pushbutton Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Switch Body Pushbutton, Round Illuminated - Yellow
