Inductors, Coils, Chokes

SRR0906-102YL

Active

Bourns Inc.

INDUCTOR,FERRITE,1MH,15+% TOL,15-% TOL,4137-CASE ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Inductors, Coils, Chokes

SRR0906-102YL

Active

Bourns Inc.

INDUCTOR,FERRITE,1MH,15+% TOL,15-% TOL,4137-CASE ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRR0906-102YL

Current - Saturation (Isat)	260 mA
Current Rating (Amps)	0.22 A
DC Resistance (DCR) [Max]	4 Ohm
Frequency - Self Resonant	2.3 MHz
Height - Seated (Max) [Max]	0.248 "
Height - Seated (Max) [Max]	6.3 mm
Inductance	1 mH
Inductance Frequency - Test	1 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 C
Q @ Freq	252 kHz, 100
Shielding	Shielded
Size / Dimension [x]	10 mm
Size / Dimension [x]	0.394 in
Size / Dimension [y]	9.5 mm
Size / Dimension [y]	0.374 in
Tolerance	15 %
Type	Drum Core, Wirewound

SRR0906 Series

Part	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Material - Core	Frequency - Self Resonant	Current Rating (Amps)	Inductance Frequency - Test	Type	DC Resistance (DCR)	Q @ Freq	Current - Saturation (Isat)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Shielding	Inductance	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	DC Resistance (DCR) [Max]	Q @ Freq [custom]	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. SRR0906-822KL	10 %	125 °C	-40 C	Ferrite	800 kHz	80 mA	1 kHz	Drum Core Wirewound	31 Ohm	100 252 kHz	90 mA	0.248 "	6.3 mm	Shielded	8.2 mH	Surface Mount	9.5 mm	10 mm	0.374 in	0.394 in
Bourns Inc. SRR0906-391YL	15 %	125 °C	-40 C	Ferrite	4.2 MHz	0.38 A	1 kHz	Drum Core Wirewound		40 796 kHz	500 mA	0.248 "	6.3 mm	Shielded	390 µH	Surface Mount	9.5 mm	10 mm	0.374 in	0.394 in	1.4 Ohm
Bourns Inc. SRR0906-680ML	20 %	125 °C	-40 C	Ferrite	9 MHz	0.85 A	1 kHz	Drum Core Wirewound			1 A	0.248 "	6.3 mm	Shielded	68 µH	Surface Mount	9.5 mm	10 mm	0.374 in	0.394 in	350 mOhm	40	2.52 MHz
Bourns Inc. SRR0906-560ML	20 %	125 °C	-40 C	Ferrite	12 MHz	930 mA	1 kHz	Drum Core Wirewound		2.52 MHz 35	1.2 A	0.248 "	6.3 mm	Shielded	56 µH	Surface Mount	9.5 mm	10 mm	0.374 in	0.394 in	300 mOhm
Bourns Inc. SRR0906-392YL	15 %	125 °C	-40 C	Ferrite	1.2 MHz	110 mA	1 kHz	Drum Core Wirewound		100 252 kHz	130 mA	0.248 "	6.3 mm	Shielded	3.9 mH	Surface Mount	9.5 mm	10 mm	0.374 in	0.394 in	16 Ohm
Bourns Inc. SRR0906-151YL	15 %	125 °C	-40 C	Ferrite	6 MHz	600 mA	1 kHz	Drum Core Wirewound	550 mOhm	40 796 kHz	700 mA	0.248 "	6.3 mm	Shielded	150 µH	Surface Mount	9.5 mm	10 mm	0.374 in	0.394 in
Bourns Inc. SRR0906-390ML	20 %	125 °C	-40 C	Ferrite	14 MHz	1.1 A	1 kHz	Drum Core Wirewound		2.52 MHz 35	1.4 A	0.248 "	6.3 mm	Shielded	39 µH	Surface Mount	9.5 mm	10 mm	0.374 in	0.394 in	160 mOhm
Bourns Inc. SRR0906-102YL	15 %	125 °C	-40 C	Ferrite	2.3 MHz	0.22 A	1 kHz	Drum Core Wirewound		100 252 kHz	260 mA	0.248 "	6.3 mm	Shielded	1 mH	Surface Mount	9.5 mm	10 mm	0.374 in	0.394 in	4 Ohm
Bourns Inc. SRR0906-821YL	15 %	125 °C	-40 C	Ferrite	2.6 MHz	0.23 A	1 kHz	Drum Core Wirewound			300 mA	0.248 "	6.3 mm	Shielded	820 µH	Surface Mount	9.5 mm	10 mm	0.374 in	0.394 in	3.5 Ohm	85		796 kHz
Bourns Inc. SRR0906-270ML	20 %	125 °C	-40 C	Ferrite	17 MHz	1.3 A	1 kHz	Drum Core Wirewound		2.52 MHz 35	1.8 A	0.248 "	6.3 mm	Shielded	27 µH	Surface Mount	9.5 mm	10 mm	0.374 in	0.394 in	140 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	N/A	0	$ 0.56
	Tape & Reel (TR)	1200	$ 0.60
Newark	Each (Supplied on Full Reel)	1000	$ 0.66
		2000	$ 0.60
		4000	$ 0.54
		6000	$ 0.52
		10000	$ 0.51

Description

General part information

SRR0906 Series

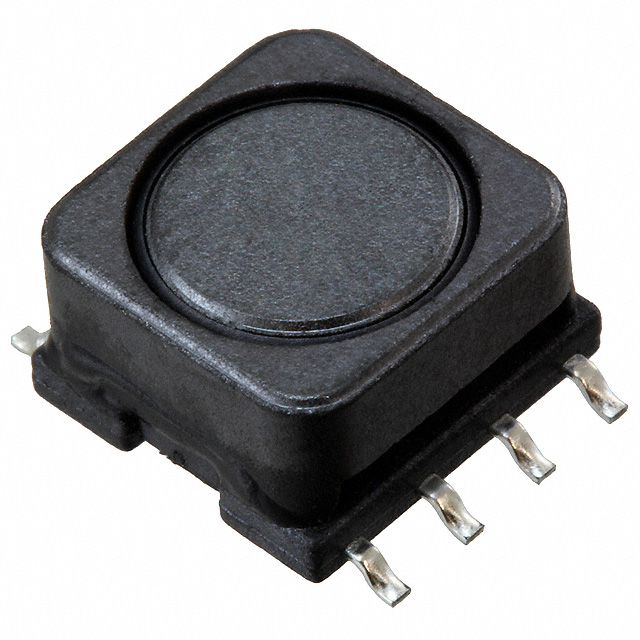

1 mH Shielded Drum Core, Wirewound Inductor 220 mA 4Ohm Max 8-SMD, Gull Wing
