Switches

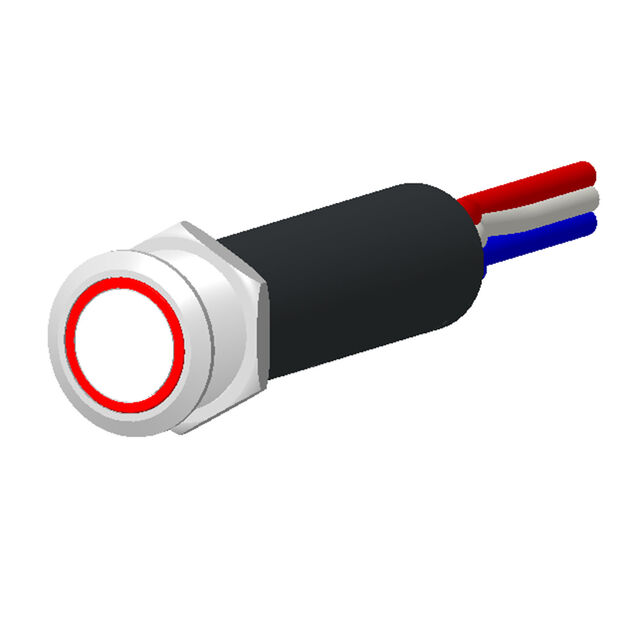

AVH1-1C36-RAEA

Active

Carling Technologies

PUSHBUTTON SWITCHES SWITCH PUSHBUTTON

Search across all available documentation for this part.

Switches

Active

Carling Technologies

PUSHBUTTON SWITCHES SWITCH PUSHBUTTON

Technical Specifications

Parameters and characteristics for this part

Specification	AVH1-1C36-RAEA

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	5 A
Electrical Life	50000 Cycles
Illumination Type, Color	Blue/Red, LED
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	19 mm
Switch Function	On-Mom
Termination Style	Wire Leads
Type	Anti-Vandal, Illuminated
Voltage Rating - DC	12 V

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Illumination Type, Color	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Switch Function	Actuator Marking	Actuator Type	Voltage Rating - DC	Circuit	Type	Ingress Protection	Current Rating (Amps)	Electrical Life
Carling Technologies AVH1-1C36-RAEA	Panel Mount Front	70 °C	-30 ░C	Wire Leads	Blue/Red LED	19 mm	Silver	On-Mom	No Marking	Button Flush Round	12 V	SPDT	Anti-Vandal Illuminated	IP67 - Dust Tight Waterproof	5 A	50000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
