Technical Specifications
Parameters and characteristics for this part
| Specification | BLA31AG601SN4D |
|---|---|
| Current Rating (Max) [Max] | 100 mA |
| DC Resistance (DCR) (Max) [Max] | 350 mOhm |
| Height (Max) [Max] [z] | 0.039 in |
| Height (Max) [Max] [z] | 1 mm |
| Impedance @ Frequency | 600 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 C |
| Package / Case | Array, 8 PC Pad, 1206 (3216 Metric) |
| Size / Dimension [x] | 0.126 " |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 0.063 " |
| Size / Dimension [y] | 1.6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.60 | |
| 10 | $ 0.48 | |||
| 25 | $ 0.40 | |||
| 50 | $ 0.36 | |||
| 100 | $ 0.32 | |||
| 250 | $ 0.28 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.21 | |||
| Digi-Reel® | 1 | $ 0.60 | ||
| 10 | $ 0.48 | |||
| 25 | $ 0.40 | |||
| 50 | $ 0.36 | |||
| 100 | $ 0.32 | |||
| 250 | $ 0.28 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.21 | |||
| N/A | 10279 | $ 0.81 | ||
| Tape & Reel (TR) | 4000 | $ 0.21 | ||
| 8000 | $ 0.19 | |||
| 12000 | $ 0.19 | |||
Description
General part information

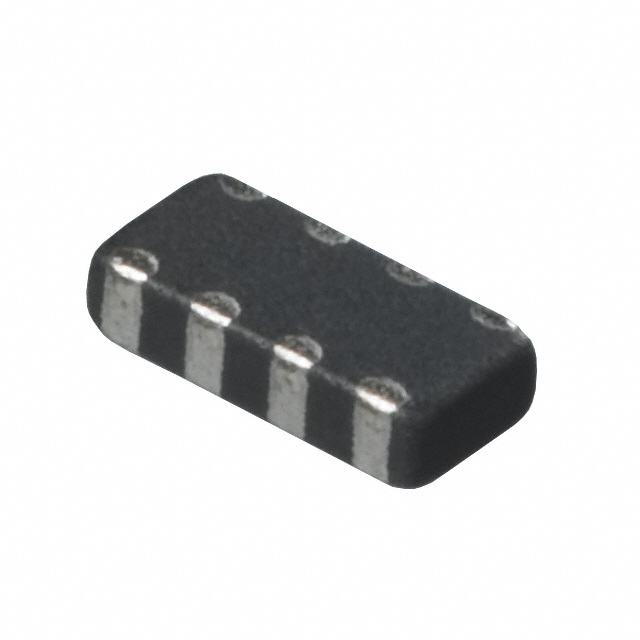

BLA31AG Series
600 Ohms @ 100 MHz 4 Ferrite Bead 1206 (3216 Metric), Array, 8 PC Pad 100mA 350mOhm
