MS3112E18-32P

Active

ITT Cannon, LLC

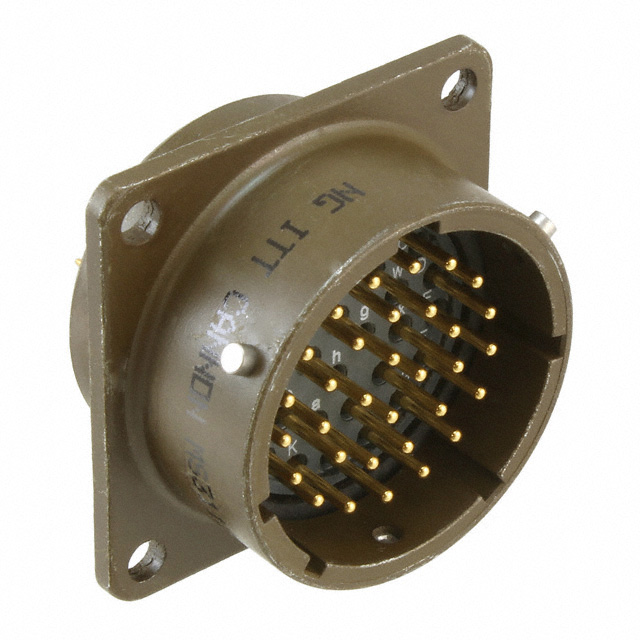

CIRCULAR CONNECTOR, MIL-DTL-26482 SERIES I, MS3112 SERIES, BOX MOUNT RECEPTACLE, 32 CONTACTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

Connectors, Interconnects

MS3112E18-32P

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, MIL-DTL-26482 SERIES I, MS3112 SERIES, BOX MOUNT RECEPTACLE, 32 CONTACTS

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3112E18-32P

Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	50 µin
Contact Finish Thickness - Mating	1.27 µm
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Ingress Protection	Environment Resistant
Mounting Feature	Flange
Mounting Type	Panel Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 C
Orientation	N (Normal)
Primary Material	Metal
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	32
Shell Size - Insert [Min]	18
Voltage Rating	600 VAC
Voltage Rating	850 VDC

MS3112E18 Series

Part	Primary Material	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Mounting Feature	Connector Type	Ingress Protection	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Color	Shell Finish	Contact Finish - Mating	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Voltage Rating	Voltage Rating	Orientation
ITT Cannon, LLC MS3112E18-32S	Metal	Bayonet Lock	50 µin	1.27 µm	Panel Mount	Flange	Receptacle Female Sockets	Environment Resistant	7.5 A	-55 C	125 °C	Aluminum Alloy	Olive Drab	Olive Drab Cadmium	Gold	18	32	600 VAC	850 VDC	N (Normal)
ITT Cannon, LLC MS3112E18-32P	Metal	Bayonet Lock	50 µin	1.27 µm	Panel Mount	Flange	Receptacle Male Pins	Environment Resistant	7.5 A	-55 C	125 °C	Aluminum Alloy	Olive Drab	Olive Drab Cadmium	Gold	18	32	600 VAC	850 VDC	N (Normal)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 33.79
		1	$ 49.26
		10	$ 37.36
		25	$ 33.89
		50	$ 31.60
		100	$ 27.96
		250	$ 26.04
	N/A	42	$ 77.34

Description

General part information

MS3112E18 Series

The MS3112E18-32P from ITT Cannon is MIL-DTL-26482 series I box mount receptacle with 32 contacts. MIL-DTL-26482 series I connectors are available in various shell styles and shell plating with 48hr, 500hr salt spray exposure. The unmated connectors and protective covers meet 48hrs exposure to MIL-STD-1344 method 1001 per MIL-DTL-26482. It has a well-proven electrical capability and is designed to withstand extreme shock, exposure and vibration.
