Specification	T1220240140-000

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	H24B
Size / Dimension [x]	4.724 "
Size / Dimension [x]	120 mm
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	60 mm
Size / Dimension [z]	2.362 "
Style	Top Entry

T1660063221 Series

...

Part	Housing Finish	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Connector Type	Thread Size	Housing Material	Housing Color	Size	Style	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location	Ingress Protection	Features

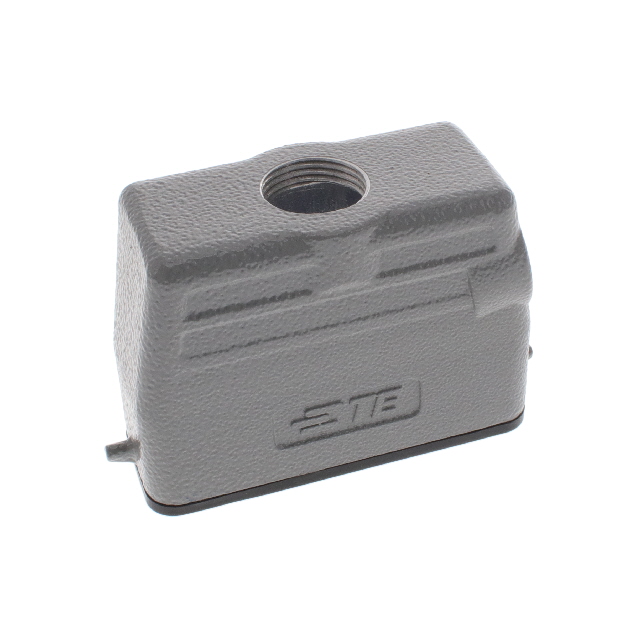

TE Connectivity Raychem Cable Protection T1329160120-000	Powder Coated	29.7 mm	3.118 in	2.291 "	58.2 mm	1.169 in	79.2 mm	Hood	M20	Aluminum Alloy Die Cast	Gray	H16A	Top Entry	125 °C	-40 °C	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant
TE Connectivity Raychem Cable Protection T1620064216-000								Base - Box Mount	PG16	Aluminum Alloy Die Cast	Gray	H6B	Side Entry	125 °C	-40 °C	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant
TE Connectivity Raychem Cable Protection T1240105132-000		43 mm	2.874 in	2.835 in	72 mm	1.693 in	73 mm	Hood	M32	Aluminum Alloy Die Cast		H10B	Top Entry	125 °C	-40 °C	Locking Clip (2) on Base Bottom	IP65 - Dust Tight Water Resistant

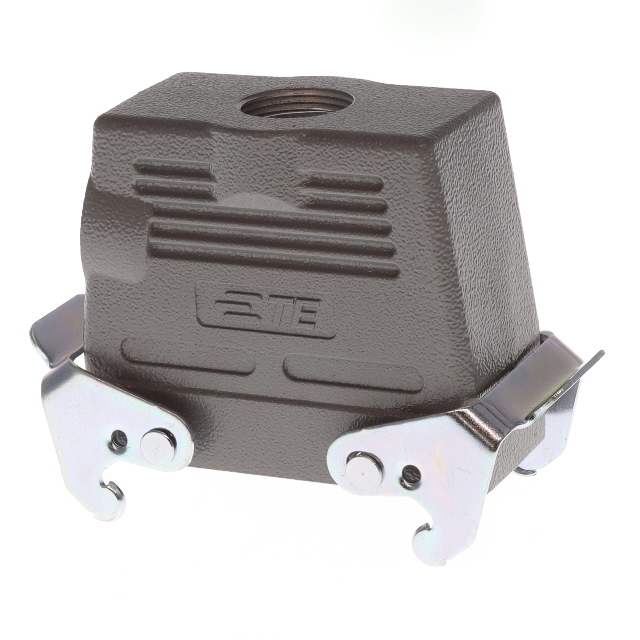

TE Connectivity Raychem Cable Protection T1280162125-000	Powder Coated	43 mm	3.681 "	2.992 in	76 mm	1.693 in	93.5 mm	Hood	M25	Aluminum Alloy Die Cast	Gray	H16B	Top Entry	125 °C	-40 °C	Locking Clip (2) on Hood	IP65 - Dust Tight Water Resistant
TE Connectivity Raychem Cable Protection T1620480129-000	Powder Coated	120.4 mm	5.327 "	3.921 "	99.6 mm	4.74 "	135.3 mm	Base - Box Mount	PG29	Aluminum Alloy Die Cast	Gray	H48B	Side Entry	125 °C	-40 °C	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	Cover

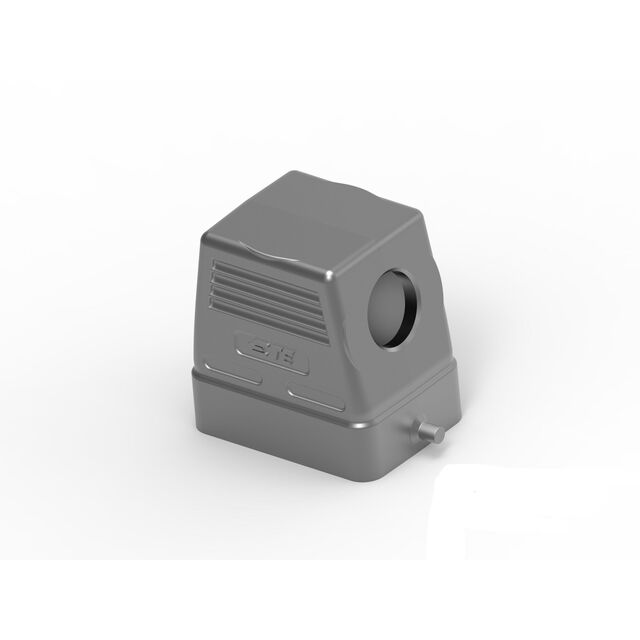

TE Connectivity Raychem Cable Protection T1310060121-000	Powder Coated	43 mm	2.362 in	2.362 "	60 mm	1.693 in	60 mm	Hood	PG21	Aluminum Alloy Die Cast	Gray	H6B	Side Entry	125 °C	-40 °C	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant
TE Connectivity Raychem Cable Protection T1220240140-000	Powder Coated	43 mm	4.724 "	2.362 "	60 mm	1.693 in	120 mm	Hood		Aluminum Alloy Die Cast	Gray	H24B	Top Entry	125 °C	-40 °C	Locking Clip (2) on Base Bottom	IP65 - Dust Tight Water Resistant
TE Connectivity Raychem Cable Protection T1490160121-000	Powder Coated	57 mm	4.606 "	2.996 in	76.1 mm	2.244 "	117 mm	Base - Box Mount	PG21	Aluminum Alloy Die Cast	Gray	H16B	Side Entry	125 °C	-40 °C	Locking Clip (2) on Hood	IP65 - Dust Tight Water Resistant
TE Connectivity Raychem Cable Protection T1710162032-000	Powder Coated	44.8 mm	3.752 in	2.461 in	62.5 mm	1.764 "	95.3 mm	Hood - Coupling	M20 M32	Aluminum Alloy Die Cast	Gray	H16B	Bottom Entry Dual	125 °C	-40 °C	Locking Clip (2) on Hood Top	IP65 - Dust Tight Water Resistant	Cable to Cable

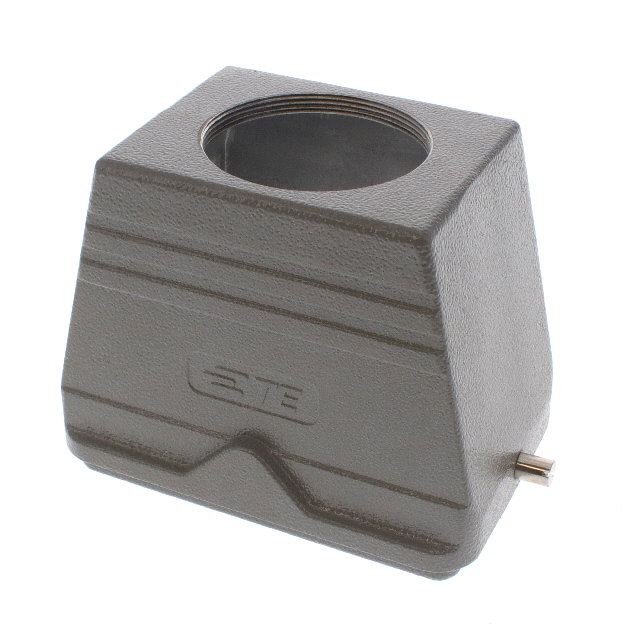

TE Connectivity Raychem Cable Protection T1320480163-000	Powder Coated	88 mm	5.197 in	4.193 "	106.5 mm	3.465 in	132 mm	Hood	M63	Aluminum Alloy Die Cast	Gray	H48B	Top Entry	125 °C	-40 °C	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant
