Optoelectronics

6772215332F

Active

DIALIGHT

7MM HG/G PMI-12VDC W/O-RING

Search across all available documentation for this part.

Optoelectronics

Active

DIALIGHT

7MM HG/G PMI-12VDC W/O-RING

Technical Specifications

Parameters and characteristics for this part

Specification	6772215332F

Current	30 mA
Ingress Protection	NEMA 4X, IP66
Lamp Color	Green
Millicandela Rating	4135 mcd
Panel Cutout Dimensions [diameter]	7.11 mm
Panel Cutout Dimensions [diameter]	0.28 "
Panel Cutout Shape	Round
Ratings	DC
Type	LED
Voltage	12 V

Part	Ratings	Current	Viewing Angle	Ingress Protection	Type	Panel Cutout Dimensions	Panel Cutout Dimensions	Wavelength - Peak	Millicandela Rating	Voltage	Panel Cutout Shape	Lamp Color	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]
DIALIGHT 6772215342F	DC	30 mA	25 °	IP66 NEMA 4X	LED	7.2 mm	0.28 in	525 nm	12000 mcd	6 V	Round	Green
DIALIGHT 6772215332F	DC	30 mA		IP66 NEMA 4X	LED				4135 mcd	12 V	Round	Green	7.11 mm	0.28 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

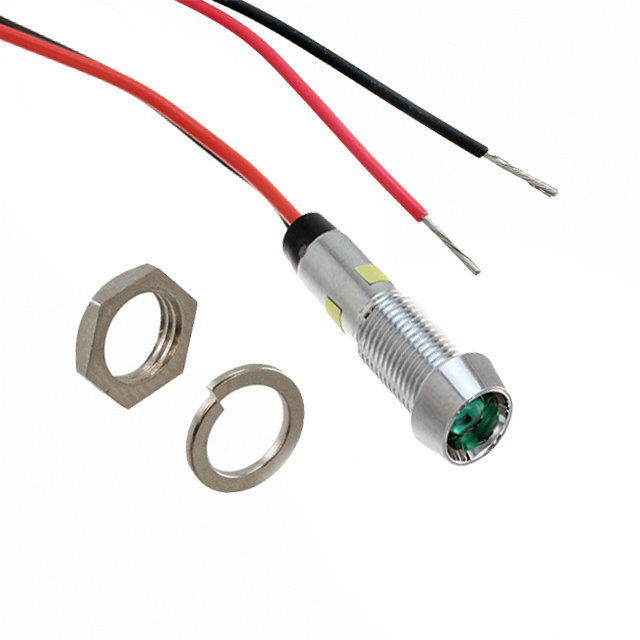

LED Panel Indicator Green 12V 30mA Wire Leads - 6" (152.40mm)
