Technical Specifications
Parameters and characteristics for this part
| Specification | 683M9W4203L001 |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Brass |
| Contact Type | Signal, Coax |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions [custom] | 4 |
| Number of Positions [custom] | 5 |
| Number of Positions [Max] | 9 |
| Number of Rows [custom] | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 C |
| Shell Material, Finish | Steel, Nickel Plated |
| Shell Size, Connector Layout [custom] | DB, B - 9W4 |
| Shell Size, Connector Layout [x] | 3 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | N/A | 45 | $ 16.66 | |
| Tray | 1 | $ 15.65 | ||
| 10 | $ 13.30 | |||
| 25 | $ 12.47 | |||
| 50 | $ 11.87 | |||
| 100 | $ 11.31 | |||
| 250 | $ 10.60 | |||
| 500 | $ 10.10 | |||
| 1000 | $ 9.61 | |||
Description
General part information
683M9W4 Series

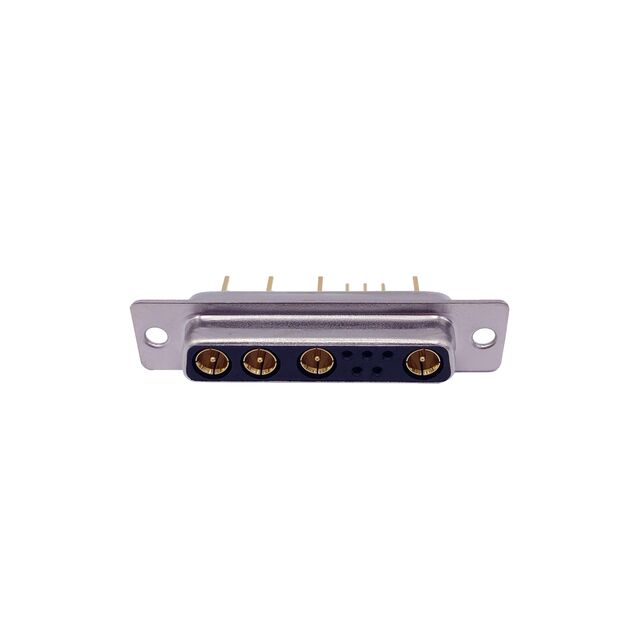

9 (5 + 4 Coax) Position D-Sub, Combo Receptacle, Female Sockets Connector
