SMS6RDH1

Active

Souriau-Sunbank by Eaton

CONN RCPT HSG 6POS 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

Connectors, Interconnects

SMS6RDH1

Active

Souriau-Sunbank by Eaton

CONN RCPT HSG 6POS 5.08MM

Deep-Dive with AI

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SMS6RDH1

Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male or Female
Fastening Type	Locking Ramp
Features	Strain Relief
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Row Spacing	5.08 mm
Row Spacing	0.2 in

SMS6R Series

Part	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Color	Row Spacing	Row Spacing	Contact Type	Connector Type	Insulation Material	Number of Positions	Note	Pitch [x]	Pitch [x]	Fastening Type	Contact Length - Mating	Contact Length - Mating	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Ingress Protection	Current Rating (Amps)	Contact Shape	Insulation Color	Contact Finish - Post	Style	Termination	Shrouding	Overall Contact Length	Overall Contact Length	Mounting Type	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Features

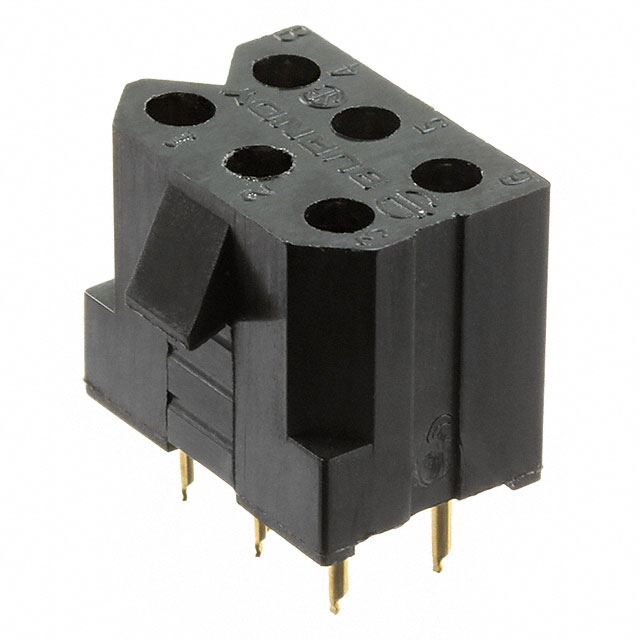

Souriau-Sunbank by Eaton SMS6R-3	2	-40 °C	105 ░C	Crimp	White	5.08 mm	0.2 in	Female Socket	Receptacle	Polyamide (PA66) Nylon 6/6	6	Contacts Not Included	0.2 in	5.08 mm	Latch Lock

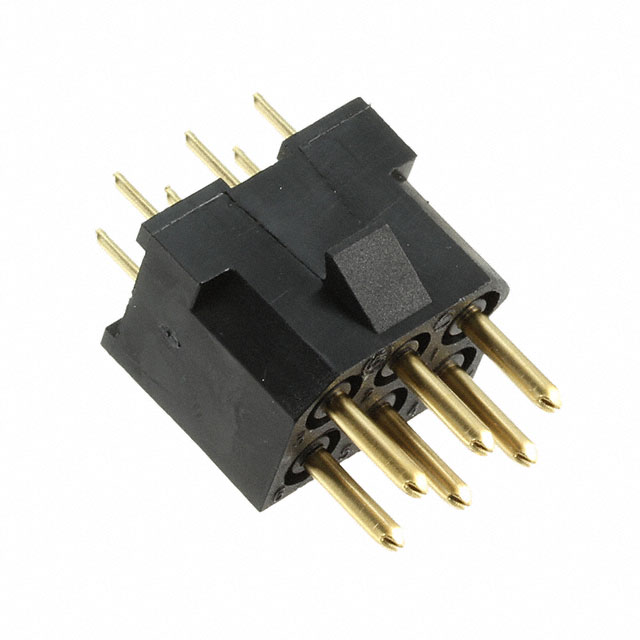

Souriau-Sunbank by Eaton SMS6R4S6	2	-55 °C	125 °C					Male Pin	Header	Polyester Glass Filled	6				Locking Ramp	0.28 in	7.11 mm	Copper Alloy	16 Áin	0.41 Ám	Gold	IP40	5 A	Circular	Black	Tin	Board to Cable/Wire	Solder	Unshrouded	0.972 in	24.7 mm	Through Hole	0.173 in	4.4 mm	5.08 mm	0.2 "	UL94 V-2	5.08 mm	0.2 in	All
Souriau-Sunbank by Eaton SMS6RE3D70	2	-55 °C	105 ░C					Female Socket	Receptacle		6				Locking Ramp			Copper Alloy			Gold	IP40	5 A	Circular	Black	Gold	Board to Board Cable	Solder				Through Hole	0.173 in	4.4 mm	5.08 mm	0.2 "	UL94 V-0	5.08 mm	0.2 in	All	Flash	Flash	Mounting Flange
Souriau-Sunbank by Eaton SMS6R-3S6		-40 °C	105 ░C	Crimp	Black			Female Socket	Receptacle	Polyamide (PA66) Nylon 6/6	6	Contacts Not Included			Locking Ramp																	Panel Mount Snap-In											Mounting Flange
Souriau-Sunbank by Eaton SMS6R1	2	-40 °C	105 ░C	Crimp		5.08 mm	0.2 in	Male or Female	Receptacle	Polyamide (PA66) Nylon 6/6	6	Contacts Not Included	0.2 in	5.08 mm	Locking Ramp																	Panel Mount Snap-In
Souriau-Sunbank by Eaton SMS6RE3S6	2	-55 °C	105 ░C					Female Socket	Receptacle		6				Locking Ramp			Copper Alloy	29.5 Áin	0.75 Ám	Gold	IP40	5 A	Circular	Black	Gold	Board to Board Cable	Solder				Through Hole	0.173 in	4.4 mm	5.08 mm	0.2 "	UL94 V-0	5.08 mm	0.2 in	All	Flash		Mounting Flange
Souriau-Sunbank by Eaton SMS6RDH1	2	-40 °C	105 ░C	Crimp		5.08 mm	0.2 in	Male or Female	Receptacle	Polyamide (PA66) Nylon 6/6	6	Contacts Not Included	0.2 in	5.08 mm	Locking Ramp																	Free Hanging (In-Line)											Strain Relief

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	-	1	$ 7.15
		10	$ 6.47
		25	$ 6.11
		50	$ 5.96
		100	$ 5.66
		250	$ 5.07
		500	$ 4.77
		1000	$ 4.17
		2500	$ 3.96

Description

General part information

SMS6R Series

6 Rectangular Connectors - Housings Receptacle 0.200" (5.08mm)
