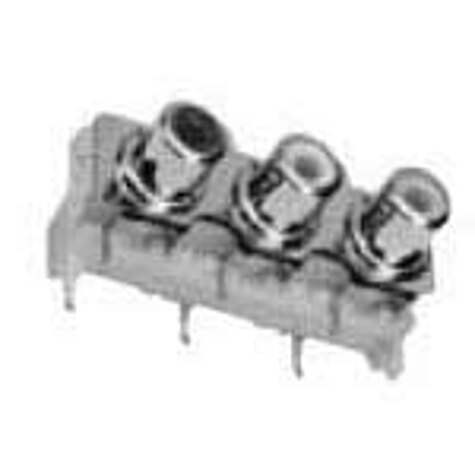

PJRAS3X1S01X
ActiveSwitchcraft Inc.
RCA PHONO CONNECTORS 3 POS RA SHLD PH JK
Deep-Dive with AI
Search across all available documentation for this part.
Connectors, Interconnects
PJRAS3X1S01X
ActiveSwitchcraft Inc.
RCA PHONO CONNECTORS 3 POS RA SHLD PH JK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PJRAS3X1S01X |
|---|---|
| Body Color | Yellow, Silver |
| Body Material | Copper Alloy |
| Connector Type | Phono (RCA) Jack |
| Contact Material | Copper Alloy |
| Contact Material - Plating | Tin |
| Current Rating (Amps) | 2 A |
| Features | Grounding Tab |
| Gender | Female |
| Housing Material | Acrylonitrile Butadiene Styrene (ABS) |
| Industry Recognized Mating Diameter [diameter] | 9 mm, 3.2 mm |
| Insulation Color | White, Red, Yellow |
| Internal Switch(s) | False |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Contacts | 3 Sets of 2 Conductors, 6 Contacts |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Shielded |
| Signal Lines | Mono |
| Termination | Solder |
