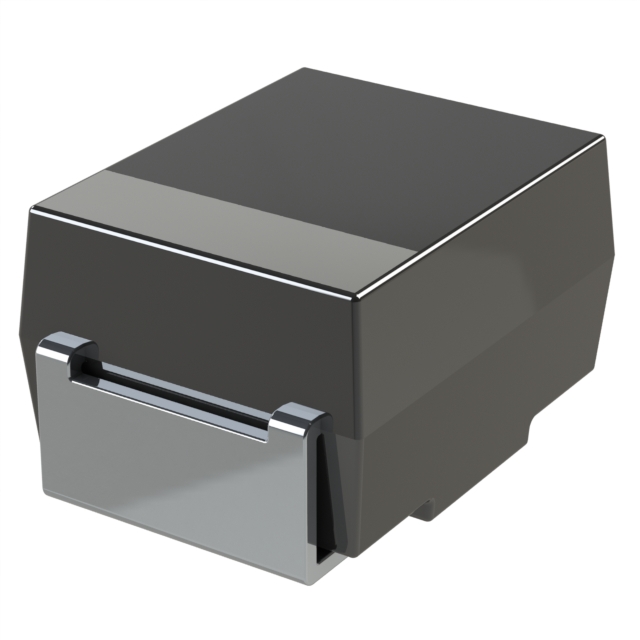

Capacitor
Capacitors

T499B685K006ATE3K5

Active
KEMET

SURFACE MOUNT TANTALUM CAPACITOR, AEC-Q200 T499 SERIES, 6.8 F, 10%, 6.3 V, 1411 [3528-21 METRIC]

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsT499B685K006ATE3K5Datasheet+3
Capacitor
Capacitors

T499B685K006ATE3K5

Active
KEMET

SURFACE MOUNT TANTALUM CAPACITOR, AEC-Q200 T499 SERIES, 6.8 F, 10%, 6.3 V, 1411 [3528-21 METRIC]

Deep-Dive with AI

DocumentsT499B685K006ATE3K5Datasheet+3

Technical Specifications

Parameters and characteristics for this part

SpecificationT499B685K006ATE3K5
Capacitance6.8 µF
ESR (Equivalent Series Resistance)3.5 Ohms
FeaturesAutomotive
GradeAutomotive
Height - Seated (Max) [Max] [z]2.1 mm
Height - Seated (Max) [Max] [z]0.083 in
Lifetime @ Temp.2000 Hrs
Manufacturer Size CodeB
Mounting TypeSurface Mount
Operating Temperature [Max]175 °C
Operating Temperature [Min]-55 C
Package / Case3528 Metric
Package / Case1411
QualificationAEC-Q200
RatingsAEC-Q200
Size / Dimension [x]3.5 mm
Size / Dimension [x]0.138 in
Size / Dimension [y]0.11 "
Size / Dimension [y]2.8 mm
Tolerance10 %
TypeMolded
Voltage - Rated6.3 VDC

T499B Series

PartSize / Dimension [x]Size / Dimension [y]Size / Dimension [y]Size / Dimension [x]Package / CasePackage / CaseTypeFeaturesCapacitanceGradeOperating Temperature [Max]Operating Temperature [Min]Lifetime @ Temp.Mounting TypeManufacturer Size CodeESR (Equivalent Series Resistance)QualificationRatingsVoltage - RatedToleranceHeight - Seated (Max) [Max] [z]Height - Seated (Max) [Max] [z]
Capacitor
KEMET
T499B474K035ATE8K0
3.5 mm
0.11 "
2.8 mm
0.138 in
3528 Metric
1411
Molded
Automotive
0.47 µF
Automotive
175 °C
-55 C
2000 Hrs
Surface Mount
B
8 Ohm
AEC-Q200
AEC-Q200
35 V
10 %
2.1 mm
0.083 in
Capacitor
KEMET
T499B156K006ATE3K5
3.5 mm
0.11 "
2.8 mm
0.138 in
3528 Metric
1411
Molded
Automotive
15 µF
Automotive
175 °C
-55 C
2000 Hrs
Surface Mount
B
3.5 Ohms
AEC-Q200
AEC-Q200
6.3 VDC
10 %
2.1 mm
0.083 in
Capacitor
KEMET
T499B336K006ATE3K0
3.5 mm
0.11 "
2.8 mm
0.138 in
3528 Metric
1411
Molded
Automotive
33 ÁF
Automotive
175 °C
-55 C
2000 Hrs
Surface Mount
B
3 Ohm
AEC-Q200
AEC-Q200
6.3 VDC
10 %
2.1 mm
0.083 in
Capacitor
KEMET
T499B155K025ATE5K0
3.5 mm
0.11 "
2.8 mm
0.138 in
3528 Metric
1411
Molded
Automotive
1500 nF
Automotive
175 °C
-55 C
2000 Hrs
Surface Mount
B
5 Ohm
AEC-Q200
AEC-Q200
25 VDC
10 %
2.1 mm
0.083 in
Capacitor
KEMET
T499B685K010ATE3K5
3.5 mm
0.11 "
2.8 mm
0.138 in
3528 Metric
1411
Molded
Automotive
6.8 µF
Automotive
175 °C
-55 C
2000 Hrs
Surface Mount
B
3.5 Ohms
AEC-Q200
AEC-Q200
10 V
10 %
2.1 mm
0.083 in
Capacitor
KEMET
T499B685K006ATE3K5
3.5 mm
0.11 "
2.8 mm
0.138 in
3528 Metric
1411
Molded
Automotive
6.8 µF
Automotive
175 °C
-55 C
2000 Hrs
Surface Mount
B
3.5 Ohms
AEC-Q200
AEC-Q200
6.3 VDC
10 %
2.1 mm
0.083 in
KEMET T499D226K016ATE800
KEMET
T499B684K035ATE6K5
3.5 mm
0.11 "
2.8 mm
0.138 in
3528 Metric
1411
Molded
Automotive
0.68 µF
Automotive
175 °C
-55 C
2000 Hrs
Surface Mount
B
6.5 Ohm
AEC-Q200
AEC-Q200
35 V
10 %
2.1 mm
0.083 in
Capacitor
KEMET
T499B226K010ATE3K0
3.5 mm
0.11 "
2.8 mm
0.138 in
3528 Metric
1411
Molded
Automotive
22 µF
Automotive
175 °C
-55 C
2000 Hrs
Surface Mount
B
3 Ohm
AEC-Q200
AEC-Q200
10 V
10 %
2.1 mm
0.083 in
Capacitor
KEMET
T499B475K020ATE3K5
3.5 mm
0.11 "
2.8 mm
0.138 in
3528 Metric
1411
Molded
Automotive
4.7 µF
Automotive
175 °C
-55 C
2000 Hrs
Surface Mount
B
3.5 Ohms
AEC-Q200
AEC-Q200
20 V
10 %
2.1 mm
0.083 in
Capacitor
KEMET
T499B335K020ATE3K5
3.5 mm
0.11 "
2.8 mm
0.138 in
3528 Metric
1411
Molded
Automotive
3.3 µF
Automotive
175 °C
-55 C
2000 Hrs
Surface Mount
B
3.5 Ohms
AEC-Q200
AEC-Q200
20 V
10 %
2.1 mm
0.083 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyN/A 0$ 0.26
Tape & Reel (TR) 2000$ 0.25
NewarkEach (Supplied on Full Reel) 1$ 0.29
5000$ 0.28
10000$ 0.26
20000$ 0.24
30000$ 0.23
50000$ 0.22

Description

General part information

T499B Series

6.8 µF Molded Tantalum Capacitors 6.3 V 1411 (3528 Metric) 3.5Ohm
