Specification	1818WB 0101000

Cable Type	Multi-Pair
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	7
Features	Drain Wire, Water-Blocked, UV Resistant
Jacket (Insulation) Material	High Density Polyethylene (HDPE)
Jacket (Insulation) Thickness [x]	0.381 mm
Jacket (Insulation) Thickness [x]	0.015 in
Jacket Color	Black
Length	304.8 m
Length	1000 ft
Number of Conductors	24
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 ░C
Shield Coverage	100 %
Shield Material	Aluminum, Polyester
Shield Type	Foil
Usage	Audio
Voltage	300 VDC
Wire Gauge	22 AWG

1818WB Series

Part	Shield Material	Shield Coverage	Jacket (Insulation) Material	Usage	Jacket (Insulation) Thickness [x]	Jacket (Insulation) Thickness [x]	Jacket Color	Length	Length	Number of Conductors	Wire Gauge	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Voltage	Conductor Material	Conductor Insulation
Belden Inc. 1818WB 0101000	Aluminum Polyester	100 %	High Density Polyethylene (HDPE)	Audio	0.381 mm	0.015 in	Black	304.8 m	1000 ft	24	22 AWG	Multi-Pair	-20 ░C	60 °C	Drain Wire UV Resistant Water-Blocked	30 AWG	7	Foil	300 VDC	Copper Tinned	Polypropylene (PP)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	N/A	0	$ 0.00

General part information

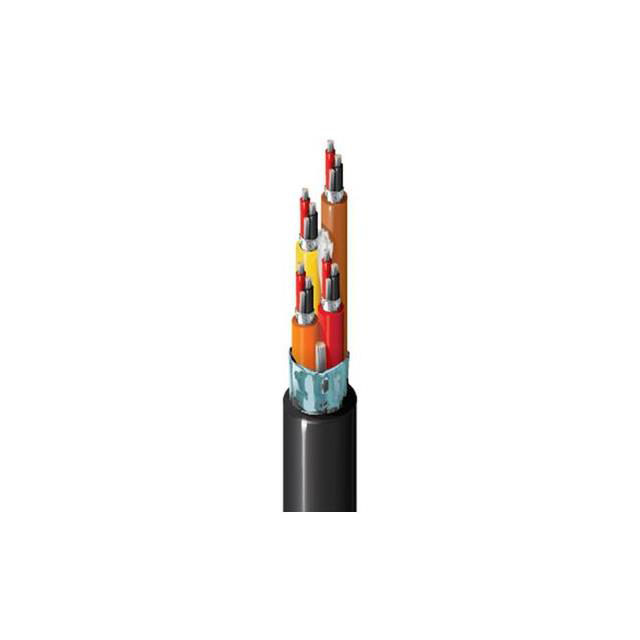

24 (12 Pair) Conductor Multi-Pair Cable Black 22 AWG Foil 1000.0' (304.8m)
