Capacitors

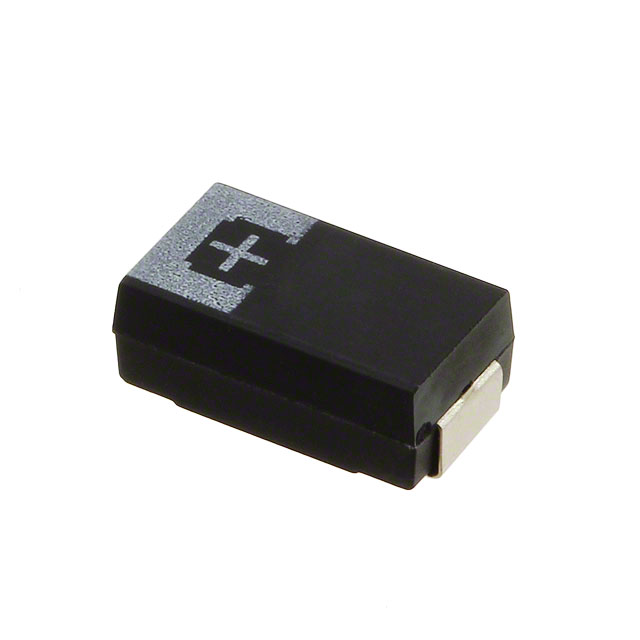

4TPB330ML
ActivePanasonic Electronic Components
TANTALUM POLYMER CAPACITOR, 330 ΜF, ± 20%, 4 V, D3L, 0.04 OHM, 2917 [7343 METRIC]
Deep-Dive with AI
Search across all available documentation for this part.
Capacitors
4TPB330ML
ActivePanasonic Electronic Components
TANTALUM POLYMER CAPACITOR, 330 ΜF, ± 20%, 4 V, D3L, 0.04 OHM, 2917 [7343 METRIC]
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4TPB330ML |
|---|---|
| Capacitance | 330 µF |
| ESR (Equivalent Series Resistance) | 40 mOhm |
| Features | General Purpose |
| Height - Seated (Max) [Max] [z] | 0.118 " |
| Height - Seated (Max) [Max] [z] | 3 mm |
| Manufacturer Size Code | D3L |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 C |
| Package / Case | 2917 (7343 Metric) |
| Size / Dimension [x] | 7.3 mm |
| Size / Dimension [x] | 0.287 " |
| Size / Dimension [y] | 0.169 " |
| Size / Dimension [y] | 4.3 mm |
| Tolerance | 20 % |
| Type | Molded |
| Voltage - Rated | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
4TPB Series
330 µF Molded Tantalum Polymer Capacitor 4 V 2917 (7343 Metric) 40mOhm @ 100kHz
