Industrial Automation and Controls

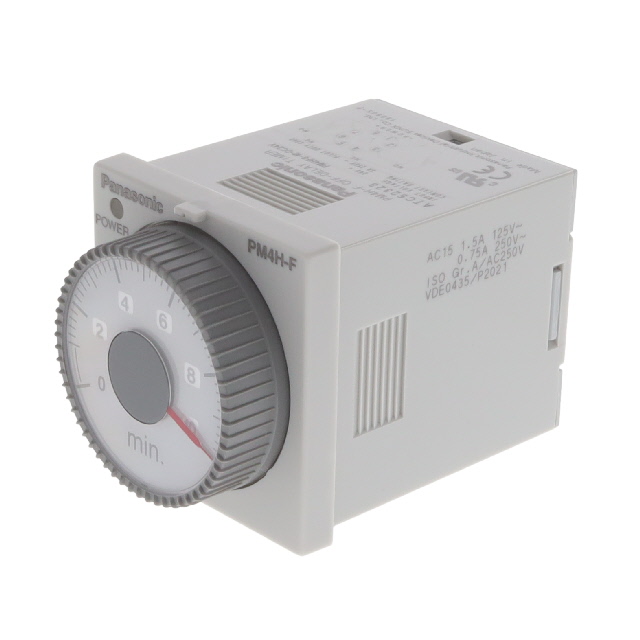

PM4HF8-M-DC24V
ObsoletePanasonic Industrial Automation Sales
RELAY TIME DELAY 10MIN 3A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PM4HF8-M-DC24V |
|---|---|
| Circuit | DPDT (2 Form C) |
| Contact Rating @ Voltage | 250 VAC, 3 A |
| Delay Time [Max] | 10 Min |
| Delay Time [Min] | 0.04 Min |
| Function | Off-Delay |
| Mounting Type | Socketable |
| Relay Type | Mechanical Relay |
| Termination Style | Plug In, 8 Pin (Octal) |
| Timing Adjustment Method | Hand Dial |
| Timing Initiate Method | Input Voltage |
| Voltage - Supply | 24 VDC |
PM4HF Series
| Part | Voltage - Supply [Min] | Voltage - Supply [Max] | Timing Initiate Method | Delay Time [Min] | Delay Time [Max] | Mounting Type | Termination Style | Circuit | Relay Type | Function | Contact Rating @ Voltage | Timing Adjustment Method | Voltage - Supply |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 200 VAC | 240 VAC | Input Voltage | 0.04 Min | 10 Min | Socketable | Plug In 8 Pin (Octal) | DPDT (2 Form C) | Mechanical Relay | Off-Delay | 3 A 250 VAC | Hand Dial | |
 Panasonic Industrial Automation Sales | 200 VAC | 240 VAC | Input Voltage | 0.04 Min | 10 Min | Socketable | Plug In 8 Pin (Octal) | DPDT (2 Form C) | Mechanical Relay | Off-Delay | 3 A 250 VAC | Hand Dial | |
 Panasonic Industrial Automation Sales | 100 VAC | 120 VAC | Input Voltage | 0.04 Sec | 10 s | Socketable | Plug In 8 Pin (Octal) | DPDT (2 Form C) | Mechanical Relay | Off-Delay | 3 A 250 VAC | Hand Dial | |
Panasonic Industrial Automation Sales | Input Voltage | 0.04 Min | 10 Min | Socketable | Plug In 8 Pin (Octal) | DPDT (2 Form C) | Mechanical Relay | Off-Delay | 3 A 250 VAC | Hand Dial | 24 VDC | ||
Panasonic Industrial Automation Sales | Input Voltage | 1 Min | 10 Min | Socketable | Plug In 8 Pin (Octal) | DPDT (2 Form C) | Mechanical Relay | Off-Delay | 3 A 250 VAC | Hand Dial | 24 VDC | ||
Panasonic Industrial Automation Sales | Input Voltage | 1 Sec | 10 s | Socketable | Plug In 8 Pin (Octal) | DPDT (2 Form C) | Mechanical Relay | Off-Delay | 3 A 250 VAC | Hand Dial | 24 VDC | ||
Panasonic Industrial Automation Sales | 100 VAC | 120 VAC | Input Voltage | 1 Min | 10 Min | Socketable | Plug In 8 Pin (Octal) | DPDT (2 Form C) | Mechanical Relay | Off-Delay | 3 A 250 VAC | Hand Dial | |
 Panasonic Industrial Automation Sales | 100 VAC | 120 VAC | Input Voltage | 0.04 Min | 10 Min | Socketable | Plug In 8 Pin (Octal) | DPDT (2 Form C) | Mechanical Relay | Off-Delay | 3 A 250 VAC | Hand Dial |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PM4HF Series
Off-Delay Time Delay Relay DPDT (2 Form C) 0.04 Min ~ 10 Min Delay 3A @ 250VAC Socketable
Documents
Technical documentation and resources
No documents available
