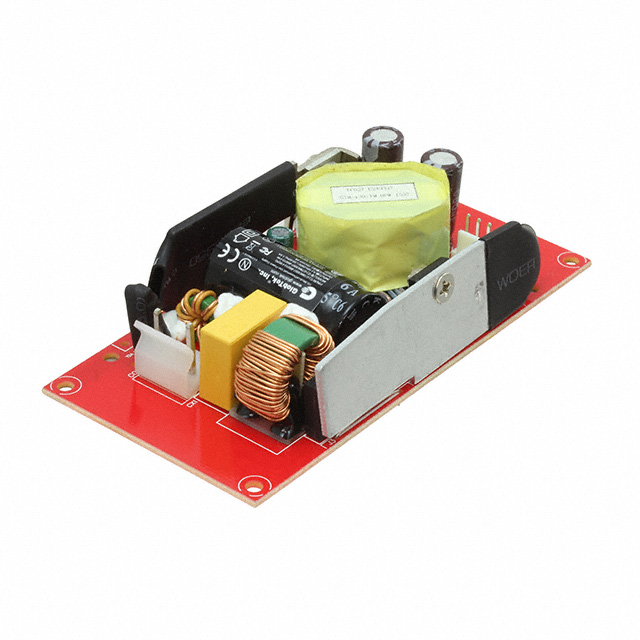

Power Supply

Power Supplies - External/Internal (Off-Board)

GTM43007-B6019-FW(R)

Active

AC/DC CONVERTER 19V 60W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCleaning & Sterilization Instructions Datasheet

Power Supply

Power Supplies - External/Internal (Off-Board)

GTM43007-B6019-FW(R)

Active

AC/DC CONVERTER 19V 60W

Deep-Dive with AI

DocumentsCleaning & Sterilization Instructions Datasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GTM43007-B6019-FW(R)

Applications	Household Appliances, Medical, ITE (Commercial)
Approval Agency	NEMKO, CB, cETLus, UkrSEPRO, CE, CCC, FCC, ETL, EAC, S-Mark
Current - Output 1	3.15 A
Efficiency	89 %
Features	Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	45 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	60 W
Standard Number	60601-1-2, 60601-1-11, 60335-1, 62368-1, 60950-1
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	19 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.10
		5	$ 12.34
		10	$ 12.02
		25	$ 11.62
		50	$ 11.33
		100	$ 11.04
		250	$ 10.67
		500	$ 10.40
	N/A	122	$ 13.99

Description

General part information

GTM43007 Series

Open Frame AC DC Converters 1 Output 19V 90 ~ 264 VAC Input

Documents

Technical documentation and resources

Cleaning & Sterilization Instructions

Related Document

Datasheet

GTM43007 Series

Part	Voltage - Isolation	Current - Output 1	Standard Number	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Applications	Mounting Type	Number of Outputs	Features	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Approval Agency	Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 1 [custom]	Size / Dimension [y]	Size / Dimension [z]
GlobTek, Inc. GTM43007-B6019-FW(R)	4000 V	3.15 A	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	19 V	45 °C	-10 °C	89 %	Household Appliances ITE (Commercial) Medical	Chassis Mount	1	Universal Input	264 VAC	90 VAC	60 W	CB CCC CE cETLus EAC ETL FCC NEMKO S-Mark UkrSEPRO	Open Frame
GlobTek, Inc. GTM43007-B4512-FW(R)	4000 V	3.75 A	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	12 V	45 °C	-10 °C	89 %	Household Appliances ITE (Commercial) Medical	Chassis Mount	1	Universal Input	264 VAC	90 VAC	45 W	CB CCC CE cETLus EAC ETL FCC NEMKO S-Mark UkrSEPRO	Open Frame
GlobTek, Inc. GTM43007-A6048-FW(R)	4000 V	1.25 A	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	48 V	45 °C	-10 °C	89 %	Household Appliances ITE (Commercial) Medical	Chassis Mount	1	Universal Input	264 VAC	90 VAC	60 W	CB CCC CE cETLus EAC ETL FCC NEMKO S-Mark UkrSEPRO	Open Frame	3 "	76.2 mm	50.8 mm	0.89 "	2 in	22.5 mm
GlobTek, Inc. GTM43007-B6048-FW(R)	4000 V	1.25 A	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	48 V	45 °C	-10 °C	89 %	Household Appliances ITE (Commercial) Medical	Chassis Mount	1	Universal Input	264 VAC	90 VAC	60 W	CB CCC CE cETLus EAC ETL FCC NEMKO S-Mark UkrSEPRO	Open Frame
GlobTek, Inc. GTM43007-B3006-FW(R)	4000 V	5 A	60335-1 60601-1-11 60601-1-2 60950-1 62368-1		45 °C	-10 °C	89 %	Household Appliances ITE (Commercial) Medical	Chassis Mount	1	Universal Input	264 VAC	90 VAC	30 Watts	CB CCC CE cETLus EAC ETL FCC NEMKO S-Mark UkrSEPRO	Open Frame							6 V
GlobTek, Inc. GTM43007-A6012-FW(R)	4000 V	5 A	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	12 V	45 °C	-10 °C	89 %	Household Appliances ITE (Commercial) Medical	Chassis Mount	1	Universal Input	264 VAC	90 VAC	60 W	CB CCC CE cETLus EAC ETL FCC NEMKO S-Mark UKCA UkrSEPRO	Open Frame	3 "	76.2 mm		0.93 "	2 in			50.8 mm	23.6 mm
GlobTek, Inc. GTM43007-A6030-FW(R)	4000 V	2 A	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	30 V	45 °C	-10 °C	89 %	Household Appliances ITE (Commercial) Medical	Chassis Mount	1	Universal Input	264 VAC	90 VAC	60 W	CB CCC CE cETLus EAC ETL FCC NEMKO S-Mark UkrSEPRO	Open Frame	3 "	76.2 mm	50.8 mm	0.89 "	2 in	22.5 mm
GlobTek, Inc. GTM43007-A6030-F(R)	4000 V	2 A		30 V	45 °C	-10 °C	89 %	Household Appliances ITE (Commercial) Medical	Chassis Mount	1	Universal Input	264 VAC	90 VAC	60 W	CB CCC CE cETLus EAC ETL FCC NEMKO S-Mark UkrSEPRO VCCI	Open Frame	3 "	76.2 mm	50.8 mm	1.2 "	2 in	30.5 mm
GlobTek, Inc. GTM43007-B6018-FW(R)	4000 V	3.33 A	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	18 V	45 °C	-10 °C	89 %	Household Appliances ITE (Commercial) Medical	Chassis Mount	1	Universal Input	264 VAC	90 VAC	60 W	CB CCC CE cETLus EAC ETL FCC NEMKO S-Mark UkrSEPRO	Open Frame
GlobTek, Inc. GTM43007-A6015-FW(R)	4000 V	4 A	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	15 V	45 °C	-10 °C	89 %	Household Appliances ITE (Commercial) Medical	Chassis Mount	1	Universal Input	264 VAC	90 VAC	60 W	CB CCC CE cETLus EAC ETL FCC NEMKO S-Mark UkrSEPRO	Open Frame	3 "	76.2 mm	50.8 mm	0.89 "	2 in	22.5 mm
