Specification	SBAS16LT3G

Capacitance @ Vr, F	2 pF
Current - Average Rectified (Io)	200 mA
Current - Reverse Leakage @ Vr	1 µA
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SOT-23-3, TO-236-3, SC-59
Qualification	AEC-Q101
Reverse Recovery Time (trr)	6 ns
Speed	Any Speed
Speed	200 mA
Supplier Device Package	SOT-23-3 (TO-236)
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	100 V
Voltage - Forward (Vf) (Max) @ If [Max]	1.25 V

BAS16XV2 Series

100 V Switching Diode

Part	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Mounting Type	Voltage - Forward (Vf) (Max) @ If [Max]	Capacitance @ Vr, F	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package	Reverse Recovery Time (trr)	Package / Case	Speed	Speed	Voltage - Forward (Vf) (Max) @ If	Grade	Qualification	Operating Temperature - Junction

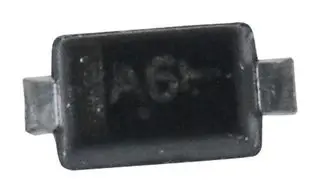

ON Semiconductor BAS16XV2T1G	1 µA	200 mA	100 V	Standard	Surface Mount	1.25 V	2 pF	150 °C	-55 °C	SOD-523	6 ns	SC-79 SOD-523	Any Speed	200 mA
ON Semiconductor BAS16	1 µA	150 mA	75 V	Standard	Surface Mount		4 pF	150 °C	-55 °C	SOT-23-3	4 ns	SC-59 SOT-23-3 TO-236-3	Any Speed	200 mA	855 mV
ON Semiconductor SBAS16LT1G	1 µA	200 mA	100 V	Standard	Surface Mount	1.25 V	2 pF	150 °C	-55 °C	SOT-23-3 (TO-236)	6 ns	SC-59 SOT-23-3 TO-236-3	Any Speed	200 mA		Automotive	AEC-Q101
ON Semiconductor SBAS16LT3G	1 µA	200 mA	100 V	Standard	Surface Mount	1.25 V	2 pF	150 °C	-55 °C	SOT-23-3 (TO-236)	6 ns	SC-59 SOT-23-3 TO-236-3	Any Speed	200 mA		Automotive	AEC-Q101
ON Semiconductor BAS16XV2T1
ON Semiconductor BAS16WT1	1 µA	200 mA	100 V	Standard	Surface Mount	1.25 V		150 °C	-55 °C		6 ns	SC-70 SOT-323	Any Speed	200 mA
ON Semiconductor SBAS16XV2T1G	1 µA	200 mA	100 V	Standard	Surface Mount	1.25 V	2 pF	150 °C	-55 °C	SOD-523	6 ns	SC-79 SOD-523	Any Speed	200 mA		Automotive	AEC-Q101
ON Semiconductor BAS16HT1H
ON Semiconductor BAS16SL	1 µA	150 mA	85 V	Standard	Surface Mount	1.25 V	2 pF	150 °C	-55 °C		8 ns	SOD-923	Any Speed	200 mA
ON Semiconductor BAS16	100 nA	215 mA	75 V	Standard	Surface Mount	1.25 V	1.2 pF			SC-59-3	4 ns	SC-59 SOT-23-3 TO-236-3		200 mA 500 ns				150 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.16
		10	$ 0.10
		100	$ 0.06
		500	$ 0.04
		1000	$ 0.04
		2000	$ 0.03
		5000	$ 0.03
	Digi-Reel®	1	$ 0.16
		10	$ 0.10
		100	$ 0.06
		500	$ 0.04
		1000	$ 0.04
		2000	$ 0.03
		5000	$ 0.03
	Tape & Reel (TR)	10000	$ 0.03
		20000	$ 0.02
		30000	$ 0.02
		50000	$ 0.02
		70000	$ 0.02
		100000	$ 0.02
		250000	$ 0.02
		500000	$ 0.02
Newark	Each (Supplied on Full Reel)	18000	$ 0.02
		30000	$ 0.02
ON Semiconductor	N/A	1	$ 0.02

Description

General part information

BAS16XV2 Series

The switching diode is designed for high speed switching applications. This device is housed in a SOT-23 surface mount package which is ideal for automated insertion.

Documents

Technical documentation and resources

Package Drawing-318-SOT-23 (TO-236) 2.90x1.30x1.00, 1.90P

Package Drawing
