Power Supplies - External/Internal (Off-Board)

GT-96300-3656-R2-AP

Active

GlobTek, Inc.

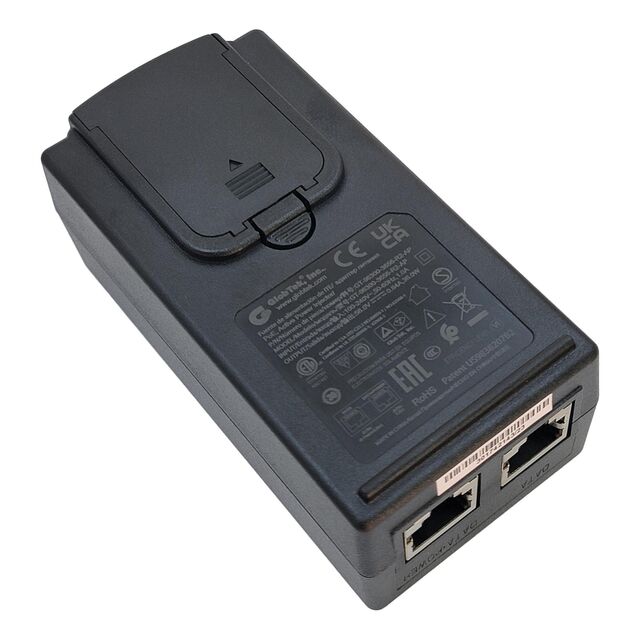

POE INJECTOR 56V 36W WALL MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Power Supplies - External/Internal (Off-Board)

GT-96300-3656-R2-AP

Active

GlobTek, Inc.

POE INJECTOR 56V 36W WALL MOUNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GT-96300-3656-R2-AP

Approval Agency	CB, CE, S-Mark, CCC, VCCI, EAC, UkrSEPRO, ETL, PSE
Compliance	IEEE802.3at
Current - Output	640 mA
Data Rate	100 Mbps, 10 Mbps, 1000 Mbps
Efficiency	Level VI
Features	SCP, OCP, OVP
Input Connector	IEC 320-C8, RJ45
Mounting Type	Wall Mount
Number of Ports	1
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Output Connector	RJ45 (Data, Power)
Power (Watts) - Per Port	36 W
Size / Dimension [x]	104 mm
Size / Dimension [x]	4.09 in
Size / Dimension [y]	2.13 in
Size / Dimension [y]	54 mm
Size / Dimension [z]	40.2 mm
Size / Dimension [z]	1.58 in
Standard Number	60335-1, 62368-1, 60950-1
Type	Midspan Injector
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	56 V

GT-96300 Series

Part	Input Connector	Output Connector	Voltage - Output	Current - Output	Efficiency	Compliance	Operating Temperature [Max]	Operating Temperature [Min]	Standard Number	Features	Approval Agency	Number of Ports	Type	Power (Watts) - Per Port	Voltage - Input [Max]	Voltage - Input [Min]	Data Rate	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Size / Dimension [y]	Size / Dimension [z]
GlobTek, Inc. GT-96300-3624-T3-PP	IEC 320-C14	RJ45 (Data Power)	24 V	1.5 A	Level VI	IEEE802.3at	40 °C	-10 °C	60335-1 60950-1 62368-1	OCP OVP SCP	CB CCC CE EAC ETL PSE RCM S-Mark UkrSEPRO VCCI	1	Passive Injector	36 W	264 VAC	90 VAC	10 Mbps 100 Mbps 1000 Mbps	35.7 mm	1.41 "	107 mm	55 mm	4.21 in	2.17 "	Wall Mount
GlobTek, Inc. GT-96300-3656-R2-AP	IEC 320-C8 RJ45	RJ45 (Data Power)	56 V	640 mA	Level VI	IEEE802.3at	40 °C	-10 °C	60335-1 60950-1 62368-1	OCP OVP SCP	CB CCC CE EAC ETL PSE S-Mark UkrSEPRO VCCI	1	Midspan Injector	36 W	264 VAC	90 VAC	10 Mbps 100 Mbps 1000 Mbps	40.2 mm	1.58 in	104 mm	54 mm	4.09 in	2.13 in	Wall Mount
GlobTek, Inc. GT-96300-3648-T3-PP	IEC 320-C14	RJ45 (Data Power)	48 V		Level VI	IEEE802.3af	40 °C	-10 °C	60335-1 60950-1 62368-1	OCP OVP SCP	CB CCC CE EAC ETL PSE RCM S-Mark UkrSEPRO VCCI	1	Midspan Injector	36 W	264 VAC	90 VAC	10 Mbps 100 Mbps 1000 Mbps		1.41 "	107 mm		4.21 in	1.57 "	Desktop	40 mm	35.7 mm
GlobTek, Inc. GT-96300-3656-T2APOE	IEC 320-C8	RJ45 (Data Power)	56 V	640 mA	Level VI	IEEE802.3at	40 °C	-10 °C	60335-1 60950-1 62368-1	OCP OVP SCP	CB CCC CE EAC ETL PSE RCM S-Mark UkrSEPRO VCCI	1	Midspan Injector	36 W	264 VAC	90 VAC	10 Mbps 100 Mbps 1000 Mbps	35.7 mm	1.41 "	107 mm	55 mm	4.21 in	2.17 "	Desktop

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 33.74
		10	$ 31.07
		48	$ 29.30
		96	$ 28.41
		144	$ 26.63
		288	$ 24.41
	N/A	43	$ 33.82

Description

General part information

GT-96300 Series

56V Power Over Ethernet (POE) 1 Port Midspan Injector 10/100/1000 Mbps Data Rate
