Switches

RR11132211

Active

ROCKER; SPST-NO; POS: 2; OFF-ON; 10A/125VAC; WHITE; NONE; RR1

Search across all available documentation for this part.

Switches

Active

ROCKER; SPST-NO; POS: 2; OFF-ON; 10A/125VAC; WHITE; NONE; RR1

Technical Specifications

Parameters and characteristics for this part

Part	Color - Actuator/Cap	Illumination Voltage (Nominal)	Circuit	Illumination Type, Color	Actuator Type	Actuator Marking	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Voltage Rating - AC	Approval Agency	Switch Function	Termination Style	Electrical Life
E-Switch RR11131100-214	Black	12 VDC	SPST	LED Red	Round - Illuminated	No Marking	Panel Mount Snap-In	-20 ░C	105 ░C	10 A	125 V	cUL UL VDE	On-Off	Quick Connect
E-Switch RR115C192S	Red		SPDT		Round	- O =	Panel Mount Snap-In	-20 ░C	105 ░C	16 A	125 V	cUL UL VDE	On-Off-On	Quick Connect
E-Switch RR11132211	White		SPST		Round	O -	Panel Mount Snap-In	-20 ░C	105 ░C	10 A	125 V	cUL UL VDE	On-Off	Quick Connect	10000 Cycles
E-Switch RR111C1921	Red		SPST		Round	O -	Panel Mount Snap-In	-20 ░C	105 ░C	16 A	125 V	cUL UL VDE	On-Off	Quick Connect

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

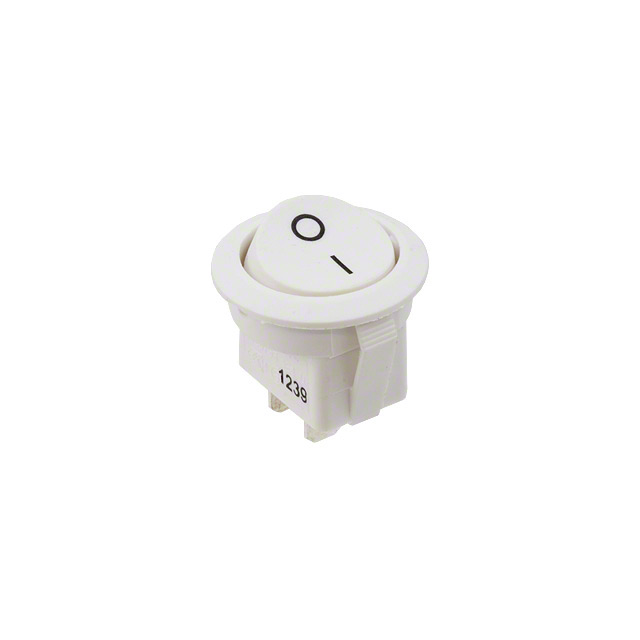

Rocker Switch SPST 10A (AC) 125 V Panel Mount, Snap-In

Technical documentation and resources
