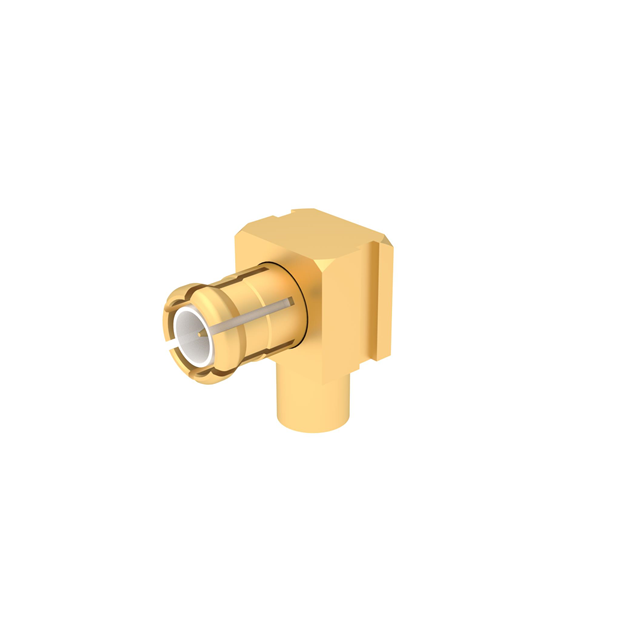

MCX M RA SD 2/50 2.6/50 C100

Search across all available documentation for this part.

Connectors, Interconnects

Active

MCX M RA SD 2/50 2.6/50 C100

Technical Specifications

Parameters and characteristics for this part

Specification	R113161000

Body Finish	Gold
Body Material	Brass
Cable Group	RG-405, RG-174, 178
Cable Group	0.085 in
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Plug, Male Pin
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 End Cap, 1 Contact, 1 Insulator, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-55 C
Shield Termination	Solder
Voltage Rating	170 V

Part	Mating Cycles	Voltage Rating	Center Contact Plating	Body Material	Includes	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Center Contact Material	Mounting Type	Impedance	Shield Termination	Frequency - Max [Max]	Fastening Type	Connector Type	Connector Style	Contact Termination	Housing Color	Cable Group	Cable Group	Number of Ports
Radiall USA, Inc. R113161000	500	170 V	Gold	Brass	1 Connector 1 Contact 1 End Cap 1 Insulator	Gold	-55 C	115 °C	Polytetrafluoroethylene (PTFE)	Brass	Free Hanging (In-Line) Right Angle	50 Ohms	Solder	6000 MHz	Snap-On	Plug Male Pin	MCX	Solder	Gold	178 RG-174 RG-405	0.085 in	1
