Technical Specifications
Parameters and characteristics for this part
| Specification | 1000APH12L |
|---|---|
| Applications | General Purpose |
| Configuration | Three Stage |
| Current | 1000 A |
| Filter Subtype | Delta |
| Filter Type | Three Phase |
| Frequency - Operating | 60Hz, 50Hz |
| Frequency - Operating (Max) | 60 Hz |
| Frequency - Operating (Min) | 50 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -10 °C |
| Termination Style | Terminal Post |
| Voltage - Rated AC | 520 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1889.41 | <4d |
CAD
3D models and CAD resources for this part
Description
General part information

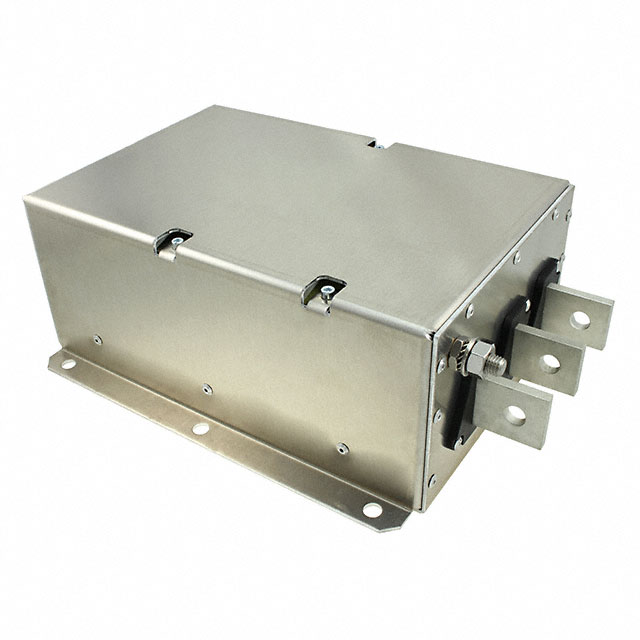

1000APH12 Series
Three Phase (Delta) EMC/EMI Line Filter 1 kA 520V 50/60Hz Three Stage Terminal Post
