Specification	27472C

Current Rating (Amps)	1.6 A
DC Resistance (DCR)	100 mOhm
Height - Seated (Max) [Max] [z]	0.065 "
Height - Seated (Max) [Max] [z]	1.65 mm
Inductance	4.7 ÁH
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 C
Package / Case	Nonstandard, 2 Lead
Shielding	Unshielded
Size / Dimension [x]	0.354 in
Size / Dimension [x]	9 mm
Size / Dimension [y]	7.7 mm
Size / Dimension [y]	0.303 in
Tolerance	20 %
Type	Wirewound

27 Series

Part	Package / Case	Tolerance	Inductance	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Current Rating (Amps)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR)	Type	DC Resistance (DCR) [Max]
Murata Electronics 27333C	Nonstandard	20 %	33 µH	Unshielded	125 °C	-40 C	7.7 mm	0.303 in	0.354 in	9 mm	Surface Mount	600 mA	0.065 "	1.65 mm	450 mOhm	Wirewound
Murata Electronics 27154C	Nonstandard	20 %	150 µH	Unshielded	125 °C	-40 C	7.7 mm	0.303 in	0.354 in	9 mm	Surface Mount	0.28 A	0.065 "	1.65 mm		Wirewound	2 Ohm
Murata Electronics 27472C	Nonstandard 2 Lead	20 %	4.7 ÁH	Unshielded	125 °C	-40 C	7.7 mm	0.303 in	0.354 in	9 mm	Surface Mount	1.6 A	0.065 "	1.65 mm	100 mOhm	Wirewound
Murata Electronics 27224C	Nonstandard	20 %	220 µH	Unshielded	125 °C	-40 C	7.7 mm	0.303 in	0.354 in	9 mm	Surface Mount	0.24 A	0.065 "	1.65 mm		Wirewound	3 Ohm
Murata Electronics 27474C	Nonstandard	20 %	470 µH	Unshielded	125 °C	-40 C	7.7 mm	0.303 in	0.354 in	9 mm	Surface Mount	160 mA	0.065 "	1.65 mm	6.5 Ohm	Wirewound
Murata Electronics 27683C	Nonstandard	20 %	68 µH	Unshielded	125 °C	-40 C	7.7 mm	0.303 in	0.354 in	9 mm	Surface Mount	0.42 A	0.065 "	1.65 mm		Wirewound
Murata Electronics 27473C	Nonstandard	20 %	47 µH	Unshielded	125 °C	-40 C	7.7 mm	0.303 in	0.354 in	9 mm	Surface Mount	0.5 A	0.065 "	1.65 mm	700 mOhm	Wirewound
Murata Electronics 27223C	Nonstandard	20 %	22 µH	Unshielded	125 °C	-40 C	7.7 mm	0.303 in	0.354 in	9 mm	Surface Mount	750 mA	0.065 "	1.65 mm		Wirewound	300 mOhm
Murata Electronics 27684C	Nonstandard	20 %	680 µH	Unshielded	125 °C	-40 C	7.7 mm	0.303 in	0.354 in	9 mm	Surface Mount	140 mA	0.065 "	1.65 mm		Wirewound	8.5 Ohm
Murata Electronics 27105C	Nonstandard	20 %	1 mH	Unshielded	125 °C	-40 C	7.7 mm	0.303 in	0.354 in	9 mm	Surface Mount	110 mA	0.065 "	1.65 mm		Wirewound	14 Ohm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.67
		10	$ 1.42
		25	$ 1.31
		50	$ 1.17
		100	$ 0.97
		250	$ 0.94
		500	$ 0.89
		1000	$ 0.83
	Digi-Reel®	1	$ 1.67
		10	$ 1.42
		25	$ 1.31
		50	$ 1.17
		100	$ 0.97
		250	$ 0.94
		500	$ 0.89
		1000	$ 0.83
	N/A	2490	$ 1.41
	Tape & Reel (TR)	2500	$ 0.71
		5000	$ 0.69
Newark	Each (Supplied on Cut Tape)	250	$ 1.00

Description

General part information

27 Series

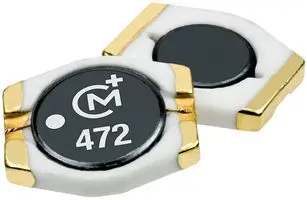

4.7 µH Unshielded Wirewound Inductor 1.6 A 100mOhm Max Nonstandard, 2 Lead

Documents

Technical documentation and resources

Product Change Notice EN

Datasheet

Technical Data Sheet EN

Datasheet
