Connectors, Interconnects

P00-CCP

Active

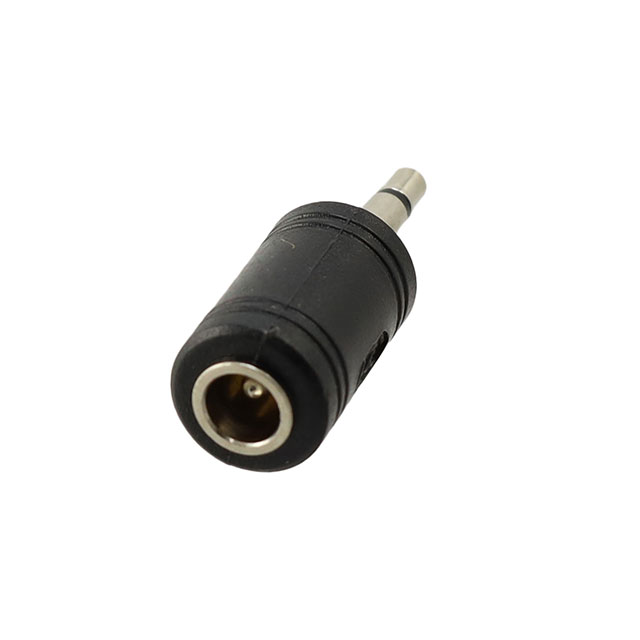

PLUG ADT;I/P;5.5X2.1MM BARREL PL

Search across all available documentation for this part.

Connectors, Interconnects

Active

PLUG ADT;I/P;5.5X2.1MM BARREL PL

Technical Specifications

Parameters and characteristics for this part

Specification	P00-CCP

Actual Diameter	2.5 x 14mm
Actual Diameter	2.5 x 5.5mm
Connector Style	Power DC Adapter
Contact Material - Plating	Bronze
Conversion Type	Between Series
Convert From (Adapter End)	Jack
Convert From (Adapter End) [custom]	2.1 mm
Convert From (Adapter End) [custom]	5.5 mm
Convert To (Adapter End)	3.5 mm
Convert To (Adapter End)	Phone Plug, Mono
Convert To (Adapter End)	0.125 in
Convert To (Adapter End)	0.141 in
Features	Barrel Power Adapter
Gender	Female to Male
Mounting Type	Free Hanging (In-Line)
Number of Positions/Contacts	2 Conductors

Part	Contact Material - Plating	Actual Diameter	Actual Diameter	Features	Convert From (Adapter End) [custom]	Convert From (Adapter End)	Convert From (Adapter End) [custom]	Gender	Connector Style	Conversion Type	Convert To (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Number of Positions/Contacts	Mounting Type
GlobTek, Inc. P00-CCP	Bronze	2.5 x 14mm	2.5 x 5.5mm	Barrel Power Adapter	2.1 mm	Jack	5.5 mm	Female to Male	Power DC Adapter	Between Series	3.5 mm	Phone Plug Mono	0.125 in	0.141 in	2 Conductors	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Connector Jack, 2.1mm ID x 5.5mm OD To Phone Plug, Mono, 3.50mm (0.141", 1/8") Free Hanging (In-Line)
