Technical Specifications
Parameters and characteristics for this part
| Specification | 031306.3MXP |
|---|---|
| Approval Agency | CE, K-Mark, UL, CSA, PSE |
| Breaking Capacity @ Rated Voltage | 200 A |
| Current Rating (Amps) | 6.3 A |
| DC Cold Resistance | 0.0154 Ohms |
| Fuse Type | Cartridge, Glass |
| Melting I²t | 242 I²t |
| Mounting Type | Requires Holder |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 C |
| Package / Case | 3AG, 3AB |
| Package / Case [x] | 0.25 in |
| Package / Case [y] | |
| Response Time | Slow Blow |
| Size / Dimension [diameter] | 6.35 mm |
| Size / Dimension [diameter] | 0.25 " |
| Size / Dimension [x] | 31.75 mm |
| Size / Dimension [x] | 1.25 in |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.26 | |
| 5 | $ 1.22 | |||
| 10 | $ 1.14 | |||
| 50 | $ 0.94 | |||
| 100 | $ 0.79 | |||
| 250 | $ 0.77 | |||
| 500 | $ 0.65 | |||
| 1000 | $ 0.57 | |||
| 5000 | $ 0.54 | |||
| N/A | 2120 | $ 1.48 | ||
Description
General part information

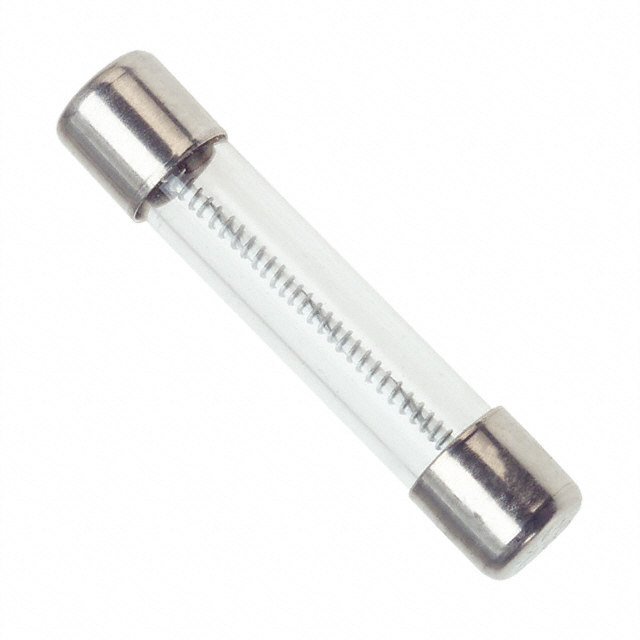

031306.3 Series
The 3AG Slo-Blo® fuse solves a broad range of application requirements while offering reliable performance and cost-effective circuit protection.
