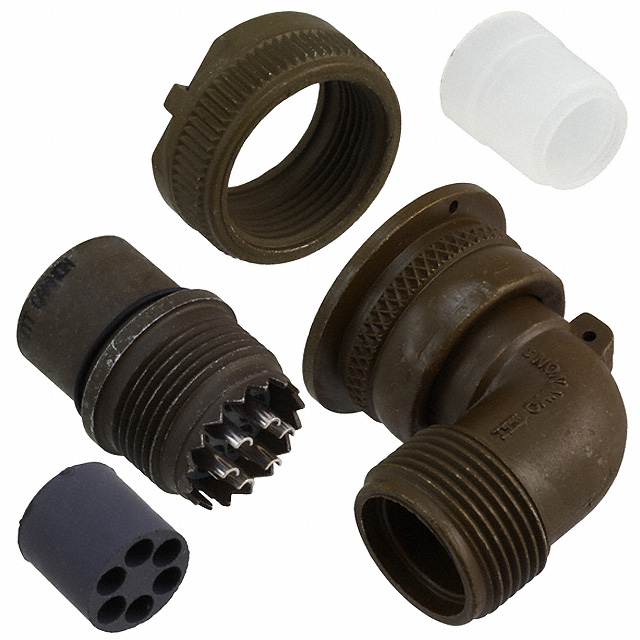

MS3108R14S-6S

Active

CONN CIRCULAR SKT 6 POS SOLDER RA CABLE MOUNT 6 TERMINAL 1 PORT

Search across all available documentation for this part.

Connectors, Interconnects

Active

CONN CIRCULAR SKT 6 POS SOLDER RA CABLE MOUNT 6 TERMINAL 1 PORT

Technical Specifications

Parameters and characteristics for this part

Specification	MS3108R14S-6S

Color	Olive Drab
Connector Type	Plug, Female Sockets
Contact Finish - Mating	Silver
Current Rating (Amps)	22 A
Fastening Type	Threaded
Features	Coupling Nut, Backshell
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	6
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 C
Orientation	N (Normal)
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	14S-6
Voltage Rating	200 VAC, 250 V

Part	Mounting Type	Color	Orientation	Shell Finish	Voltage Rating	Connector Type	Shell Material	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Qualification	Number of Positions	Features	Grade	Shell Size - Insert	Contact Finish - Mating	Ingress Protection	Primary Material
ITT Cannon, LLC MS3108R14S-6S	Free Hanging (In-Line) Right Angle	Olive Drab	N (Normal)	Olive Drab Cadmium	200 VAC 250 V	Plug Female Sockets	Aluminum Alloy	Threaded	-55 C	125 °C	22 A	MIL-DTL-5015	6	Backshell Coupling Nut	Military	14S-6	Silver	Environment Resistant	Metal
ITT Cannon, LLC MS3108R14S-7S	Free Hanging (In-Line) Right Angle	Olive Drab	N (Normal)	Olive Drab Cadmium	500 VAC 700 VDC	Plug Female Sockets	Aluminum Alloy	Threaded	-55 C	125 °C	22 A	MIL-DTL-5015		Backshell Coupling Nut	Military	14S-7	Silver	Environment Resistant	Metal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 42.43

General part information

6 Position Circular Connector Plug, Female Sockets Solder Cup
