Technical Specifications
Parameters and characteristics for this part
| Specification | 3RH22621AP00 |
|---|---|
| Coil Power | 37 VA |
| Coil Voltage | 230 VAC |
| Contact Form | 8PST-6NO/2NC (6 Form A, 2 Form B) |
| Contact Rating (Current) | 10 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 195.5 VAC |
| Operate Time | 33 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Release Time | 15 ms |
| Switching Voltage [Max] | 690 VAC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
3RH22621 Series

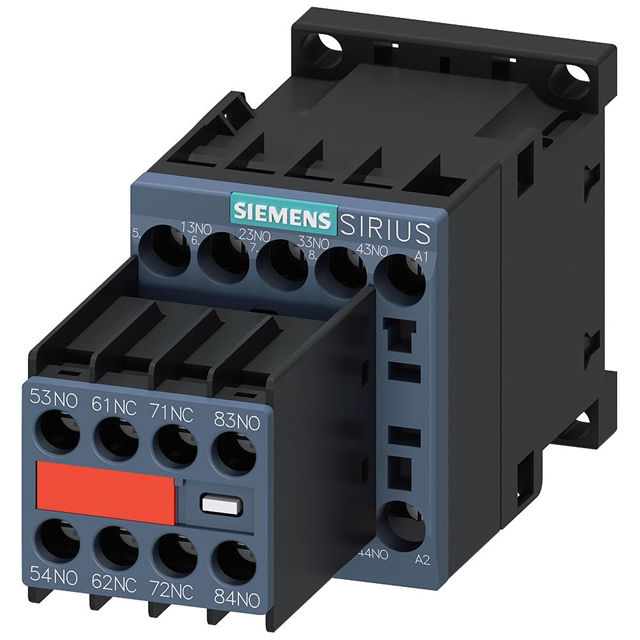

CONTACTORS - ELECTROMECHANICAL CONTROL RELAY 6NO+2NC AC 230V SCREW
