AER40-40-33CB/A01

Active

CTS Thermal Management Products

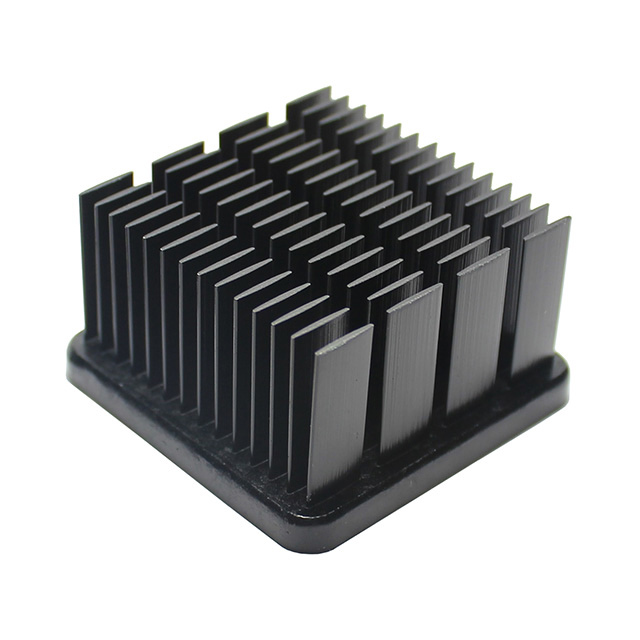

HEATSINK FORGED BLK ANO TOP MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsA01 Laminating Adhesive Datasheet

Fans, Blowers, Thermal Management

AER40-40-33CB/A01

Active

CTS Thermal Management Products

HEATSINK FORGED BLK ANO TOP MNT

Deep-Dive with AI

DocumentsA01 Laminating Adhesive Datasheet

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AER40-40-33CB/A01

Attachment Method	Thermal Tape, Adhesive (Included)
Fin Height	1.283 in
Length	1.559 in
Material	Aluminum Alloy
Material Finish	Black Anodized
Package Cooled	ASIC...), BGA, ASIC, LGA, CPU, Assorted (BGA
Shape	Square, Fins
Shelf Life	24 Months
Thermal Resistance	7.21 °C/W, 1.62 °C/W
Type	Top Mount
Width	1.559 in

AER40 Series

Part	Shelf Life	Thermal Resistance	Attachment Method	Material	Material Finish	Width	Package Cooled	Shape	Fin Height	Length	Type
CTS Thermal Management Products AER40-40-23CB/A01	24 Months	2.02 °C/W 8.41 °C/W	Adhesive (Included) Thermal Tape	Aluminum Alloy	Black Anodized	1.559 in	ASIC ASIC...) Assorted (BGA BGA CPU LGA	Fins Square	0.89 in	1.559 in	Top Mount
CTS Thermal Management Products AER40-40-21CB/A01	24 Months	2.12 °C/W 8.71 °C/W	Adhesive (Included) Thermal Tape	Aluminum Alloy	Black Anodized	1.559 in	ASIC ASIC...) Assorted (BGA BGA CPU LGA	Fins Square	0.811 in	1.559 in	Top Mount
CTS Thermal Management Products AER40-40-12CB/A01	24 Months	3.02 °C/W 10.01 °C/W	Adhesive (Included) Thermal Tape	Aluminum Alloy	Black Anodized	1.559 in	ASIC ASIC...) Assorted (BGA BGA CPU LGA	Fins Square	0.457 in	1.559 in	Top Mount
CTS Thermal Management Products AER40-40-18CB/A01	24 Months	2.42 °C/W 9.01 °C/W	Adhesive (Included) Thermal Tape	Aluminum Alloy	Black Anodized	1.559 in	ASIC ASIC...) Assorted (BGA BGA CPU LGA	Fins Square	0.693 in	1.559 in	Top Mount
CTS Thermal Management Products AER40-40-15CB/A01	24 Months	2.72 °C/W 9.51 °C/W	Adhesive (Included) Thermal Tape	Aluminum Alloy	Black Anodized	1.559 in	ASIC ASIC...) Assorted (BGA BGA CPU LGA	Fins Square	0.575 in	1.559 in	Top Mount
CTS Thermal Management Products AER40-40-33CB/A01	24 Months	1.62 °C/W 7.21 °C/W	Adhesive (Included) Thermal Tape	Aluminum Alloy	Black Anodized	1.559 in	ASIC ASIC...) Assorted (BGA BGA CPU LGA	Fins Square	1.283 in	1.559 in	Top Mount
CTS Thermal Management Products AER40-40-28CB/A01	24 Months	1.72 °C/W 7.81 °C/W	Adhesive (Included) Thermal Tape	Aluminum Alloy	Black Anodized	1.559 in	ASIC ASIC...) Assorted (BGA BGA CPU LGA	Fins Square	1.087 in	1.559 in	Top Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$	Updated

Digikey	N/A	0	$ 7.42	1m+
	Tray	300	$ 7.42	1m+

CAD

3D models and CAD resources for this part

Description

General part information

AER40 Series

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Alloy Top Mount

Documents

Technical documentation and resources

A01 Laminating Adhesive

Datasheet
