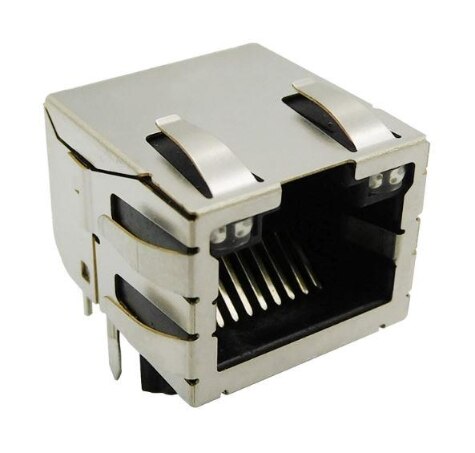

SS-60300-102
Connectors, Interconnects

SS-60300-102

Active
Bel Fuse Inc.

MODULAR CONNECTOR, RJ45 JACK, 1 X 1 (PORT), 8P8C, THROUGH HOLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDrawing EN
SS-60300-102
Connectors, Interconnects

SS-60300-102

Active
Bel Fuse Inc.

MODULAR CONNECTOR, RJ45 JACK, 1 X 1 (PORT), 8P8C, THROUGH HOLE MOUNT

Deep-Dive with AI

DocumentsDatasheetDrawing EN

Technical Specifications

Parameters and characteristics for this part

SpecificationSS-60300-102
Connector TypeJack
Contact FinishGold
Contact Finish Thickness50 µin
Contact Finish Thickness1.27 µm
Contact MaterialCopper Alloy
Housing MaterialThermoplastic
LED ColorYellow, Green
Mounting TypeThrough Hole, Panel Mount
Number of Ports1
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Number of Rows1
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 C
OrientationVertical
ShieldingEMI Finger, Shielded
Tab DirectionUser Selectable
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyN/A 0$ 3.33
Tray 1$ 2.32
10$ 2.11
25$ 1.99
40$ 1.95
84$ 1.86
252$ 1.63
NewarkEach 500$ 2.37
1000$ 2.02

Description

General part information

SS-60300 Series

Jack Modular Connector 8p8c (RJ45, Ethernet) Vertical Shielded, EMI Finger
