Technical Specifications
Parameters and characteristics for this part
| Specification | 15-000733 |
|---|---|
| Backset Spacing | 6.63 mm |
| Backset Spacing | 0.261 in |
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 7.5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Board Lock, Mounting Brackets |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -25 °C |
| Shell Material, Finish | Nickel Plated, Zinc Die Cast |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
15-0007 Series
| Part | Contact Type | Connector Type | Shell Size, Connector Layout | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Mounting Type | Number of Positions | Termination | Dielectric Material | Number of Rows | Contact Finish | Material Flammability Rating | Connector Style | Flange Feature | Voltage Rating | Current Rating (Amps) | Ingress Protection | Color | Shell Material, Finish | Contact Finish Thickness | Contact Finish Thickness | Features | Wire Gauge | Shell Size, Connector Layout [x] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Backset Spacing | Backset Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol CONEC | Signal | Receptacle Female Sockets | 2 | -25 °C | 105 ░C | Copper Alloy | Board Edge Right Angle Through Hole | 15 | Solder | Polybutylene Terephthalate (PBT) Glass Filled | 2 | Gold | UL94 V-0 | D-Sub | Female Screwlock (4-40) Mating Side | 125 VDC | 7.5 A | IP67 - Dust Tight Waterproof | Black | Nickel Plated Zinc Die Cast | 8 çin | 0.203 çm | Board Lock Mounting Brackets | ||||||||
 Amphenol CONEC | Signal | Receptacle Female Sockets | -25 °C | 105 ░C | Copper Alloy | 44 | Polybutylene Terephthalate (PBT) Glass Filled | 3 | Gold | UL94 V-0 | D-Sub High Density | Female Screwlock (4-40) Mating Side | 60 VDC | 3 A | IP67 - Dust Tight Waterproof | Black | Nickel Plated Zinc Die Cast | 8 çin | 0.203 çm | 22 AWG | 3 | B DB | |||||||||
 Amphenol CONEC | Signal | Receptacle Female Sockets | 2 | -25 °C | 105 ░C | Copper Alloy | 26 | Polybutylene Terephthalate (PBT) Glass Filled | 3 | Gold | UL94 V-0 | D-Sub High Density | Female Screwlock (4-40) Mating Side | 60 VDC | 3 A | IP67 - Dust Tight Waterproof | Black | Nickel Plated Zinc Die Cast | 8 çin | 0.203 çm | 22 AWG | (DA A) High Density | |||||||||
 Amphenol CONEC | Signal | Receptacle Female Sockets | -25 °C | 105 ░C | Copper Alloy | Board Edge Right Angle Through Hole | Solder | Polybutylene Terephthalate (PBT) Glass Filled | 2 | Gold | UL94 V-0 | D-Sub | Female Screwlock (4-40) Mating Side | 125 VDC | 7.5 A | IP67 - Dust Tight Waterproof | Black | Nickel Plated Zinc Die Cast | 8 çin | 0.203 çm | Board Lock Mounting Brackets | B DB | 3 | ||||||||
Amphenol CONEC | Signal | Male Pins Plug | -25 °C | 105 ░C | Copper Alloy | Board Edge Right Angle Through Hole | 9 | Solder | Polybutylene Terephthalate (PBT) Glass Filled | 2 | Gold | UL94 V-0 | D-Sub | Female Screwlock (4-40) Mating Side | 125 VDC | 7.5 A | IP67 - Dust Tight Waterproof | Black | Nickel Plated Zinc Die Cast | 8 çin | 0.203 çm | Board Lock Mounting Brackets | DE E | 1 | 6.63 mm | 0.261 in | |||||
 Amphenol CONEC | Signal | Male Pins Plug | -25 °C | 105 ░C | Copper Alloy | Board Edge Right Angle Through Hole | Solder | Polybutylene Terephthalate (PBT) Glass Filled | 2 | Gold | UL94 V-0 | D-Sub | Female Screwlock (4-40) Mating Side | 125 VDC | 7.5 A | IP67 - Dust Tight Waterproof | Black | Nickel Plated Zinc Die Cast | 8 çin | 0.203 çm | Board Lock Mounting Brackets | B DB | 3 | 6.63 mm | 0.261 in | ||||||
 Amphenol CONEC | Signal | Receptacle Female Sockets | -40 °C | 105 ░C | Copper Alloy | Board Edge Right Angle Through Hole | 9 | Solder | Polybutylene Terephthalate (PBT) Glass Filled | 2 | Gold | UL94 V-0 | D-Sub | Female Screwlock (4-40) Mating Side | 125 VDC | 7.5 A | IP67 - Dust Tight Waterproof | Black | Nickel Plated Zinc Die Cast | 8 çin | 0.203 çm | Board Lock Mounting Brackets | DE E | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 26.61 | |
| 10 | $ 23.30 | |||
| 25 | $ 22.29 | |||
| 50 | $ 21.57 | |||
| 100 | $ 20.85 | |||
| 250 | $ 19.70 | |||
| 500 | $ 19.13 | |||
Description
General part information
15-0007 Series

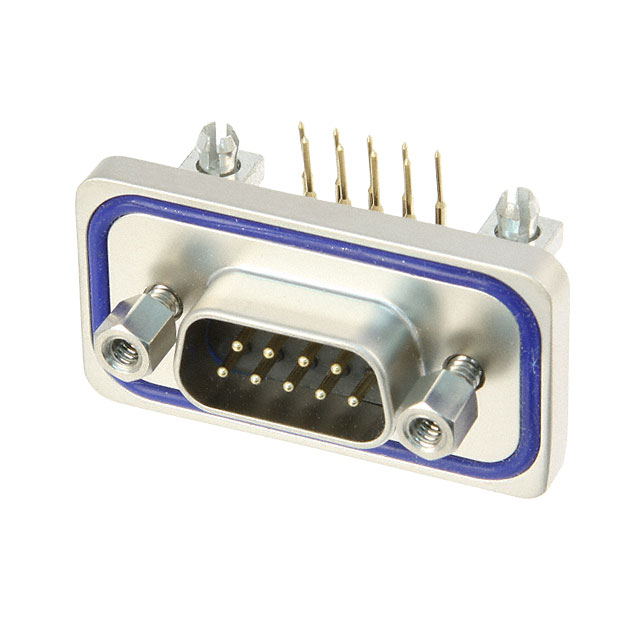

9 Position D-Sub Plug, Male Pins Connector
