Switches

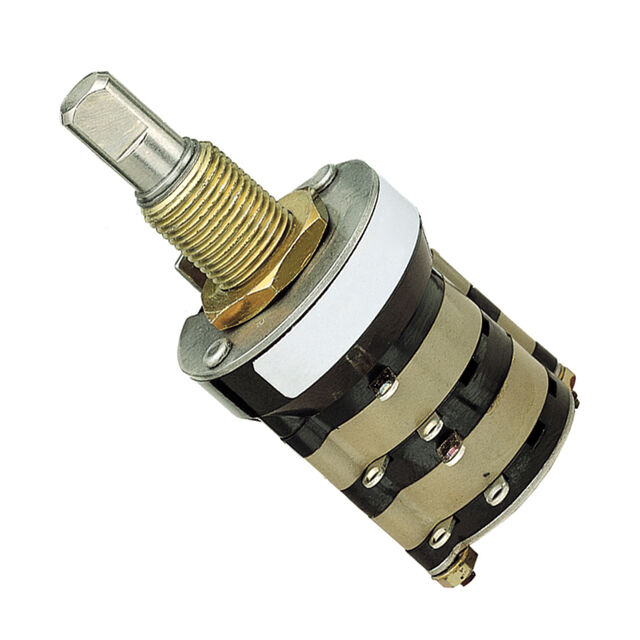

44A45-01-1-03N

Active

Grayhill Inc.

ROTARY SWITCH, SOLDER LUG, 3 POSITION, 1 POLE, 45 °, 5 A, 115 V, 44 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

Switches

44A45-01-1-03N

Active

Grayhill Inc.

ROTARY SWITCH, SOLDER LUG, 3 POSITION, 1 POLE, 45 °, 5 A, 115 V, 44 SERIES

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	44A45-01-1-03N

Actuator Length [x]	11.1 mm
Actuator Type	Flatted (6.35mm Dia)
Angle of Throw	45 °
Circuit per Deck	SP3T
Contact Material	Silver Alloy
Contact Timing	Non-Shorting (BBM)
Current Rating (Amps)	5 A, 1 A
Depth Behind Panel [z]	26.04 mm
Index Stops	Fixed
Mounting Type	Panel Mount
Number of Decks [custom]	1
Number of Poles per Deck	1
Termination Style	Solder Lug
Voltage Rating - AC	115 V
Voltage Rating - DC	28 V

44A45 Series

Part	Number of Positions	Circuit per Deck	Number of Decks [custom]	Current Rating (Amps)	Voltage Rating - DC	Contact Material	Mounting Type	Voltage Rating - AC	Angle of Throw	Number of Poles per Deck	Termination Style	Actuator Type	Depth Behind Panel [z]	Contact Timing	Actuator Length [x]	Index Stops	Number of Decks
Grayhill Inc. 44A45-01-3-02N	2	3PDT	1	1 A 5 A	28 V	Silver Alloy	Panel Mount	115 V	45 °	3	Solder Lug	Flatted (6.35mm Dia)	26.04 mm	Non-Shorting (BBM)	11.1 mm	Fixed
Grayhill Inc. 44A45-01-1-03S		SP3T	1	1 A 5 A	28 V	Silver Alloy	Panel Mount	115 V	45 °	1	Solder Lug	Flatted (6.35mm Dia)	26.04 mm	Shorting (MBB)	11.1 mm	Fixed
Grayhill Inc. 44A45-01-1-03N		SP3T	1	1 A 5 A	28 V	Silver Alloy	Panel Mount	115 V	45 °	1	Solder Lug	Flatted (6.35mm Dia)	26.04 mm	Non-Shorting (BBM)	11.1 mm	Fixed
Grayhill Inc. 44A45-03-1-04N	4	SP4T		1 A 5 A	28 V	Silver Alloy	Panel Mount	115 V	45 °	1	Solder Lug	Flatted (6.35mm Dia)	43.61 mm	Non-Shorting (BBM)	11.1 mm	Fixed	3
Grayhill Inc. 44A45-03-4-02N	2	4PDT		1 A 5 A	28 V	Silver Alloy	Panel Mount	115 V	45 °		Solder Lug	Flatted (6.35mm Dia)	43.61 mm	Non-Shorting (BBM)	11.1 mm	Fixed	3
Grayhill Inc. 44A45-02-1-02N	2	SPDT		1 A 5 A	28 V	Silver Alloy	Panel Mount	115 V	45 °	1	Solder Lug	Flatted (6.35mm Dia)	34.82 mm	Non-Shorting (BBM)	11.1 mm	Fixed	2
Grayhill Inc. 44A45-08-1-08N	8	SP8T		1 A 5 A	28 V	Silver Alloy	Panel Mount	115 V	45 °	1	Solder Lug	Flatted (6.35mm Dia)	93.9 mm	Non-Shorting (BBM)	11.1 mm	Continuous	8
Grayhill Inc. 44A45-01-1-05N	5	SP5T	1	1 A 5 A	28 V	Silver Alloy	Panel Mount	115 V	45 °	1	Solder Lug	Flatted (6.35mm Dia)	26.04 mm	Non-Shorting (BBM)	11.1 mm	Fixed
Grayhill Inc. 44A45-02-2-04N	4	DP4T		1 A 5 A	28 V	Silver Alloy	Panel Mount	115 V	45 °	2	Solder Lug	Flatted (6.35mm Dia)	34.82 mm	Non-Shorting (BBM)	11.1 mm	Fixed	2
Grayhill Inc. 44A45-04-1-03N		SP3T		1 A 5 A	28 V	Silver Alloy	Panel Mount	115 V	45 °	1	Solder Lug	Flatted (6.35mm Dia)	52.4 mm	Non-Shorting (BBM)	11.1 mm	Fixed	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 60.68
	N/A	0	$ 62.05
Newark	Each	1	$ 84.87
		100	$ 69.50
		250	$ 63.42

Description

General part information

44A45 Series

Rotary Switch 3 Position SP3T 5A (AC), 1A (DC) 115 VAC Panel Mount

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
