PCL721A

Active

Switchcraft Inc.

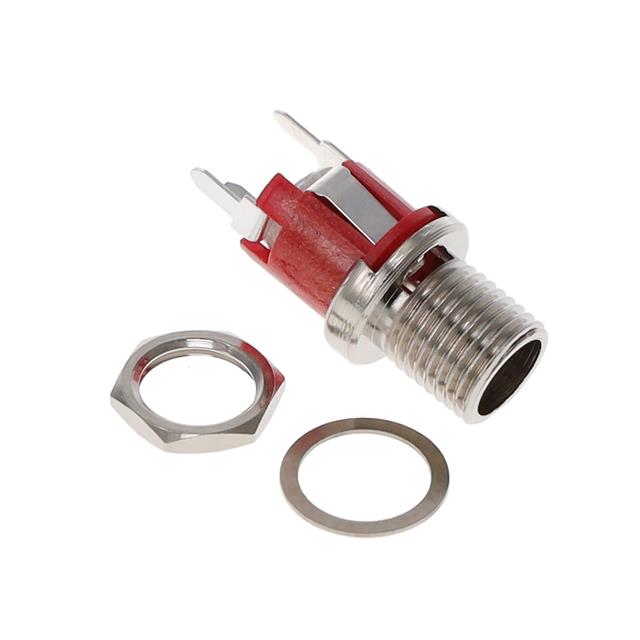

CONN DC POWER RCP 2 POS SOLDER ST THRU-HOLE 3 TERMINAL 1 PORT

Search across all available documentation for this part.

Connectors, Interconnects

Active

Switchcraft Inc.

CONN DC POWER RCP 2 POS SOLDER ST THRU-HOLE 3 TERMINAL 1 PORT

Technical Specifications

Parameters and characteristics for this part

Specification	PCL721A

Actual Diameter	0.083 ", 0.217 "
Actual Diameter	2.1 mm, 5.5 mm
Body Color	Silver, Red
Body Material	Copper Alloy
Connector Type	Jack
Contact Material	Copper Alloy
Contact Material - Plating [custom]	Silver
Current Rating (Amps)	5 A
Features	Thread Lock, Mounting Hardware
Gender	Male
Housing Material	Thermoplastic
Industry Recognized Mating Diameter [diameter]	0.083 in, 0.217 "
Industry Recognized Mating Diameter [diameter]	5.5 mm, 2.1 mm
Internal Switch(s)	Single Switch, Normally Closed
Mating Length/Depth [x]	0.476 "
Mating Length/Depth [x]	12.1 mm
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions/Contacts	3 Conductors, 2 Conductors
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-40 °C
Shielding	Unshielded
Termination	Solder
Thread Size	5/16"-32
Voltage - Rated	30 V

Part	Features	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Current Rating (Amps)	Housing Material	Thread Size	Mounting Feature	Mounting Type	Connector Type	Internal Switch(s)	Body Material	Termination	Body Color	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Number of Positions/Contacts	Contact Material - Plating [custom]	Actual Diameter	Actual Diameter	Voltage - Rated	Mating Length/Depth [x]	Mating Length/Depth [x]	Shielding
Switchcraft Inc. PCL721A	Mounting Hardware Thread Lock	Male	65 °C	-40 °C	Copper Alloy	5 A	Thermoplastic	5/16"-32	Bulkhead - Front Side Nut	Panel Mount Through Hole	Jack	Normally Closed Single Switch	Copper Alloy	Solder	Red Silver	0.083 in 0.217 "	2.1 mm 5.5 mm	2 Conductors 3 Conductors	Silver	0.083 " 0.217 "	2.1 mm 5.5 mm	30 V	0.476 "	12.1 mm	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector Jack 2.10mm ID (0.083"), 5.50mm OD (0.217") Panel Mount, Through Hole
