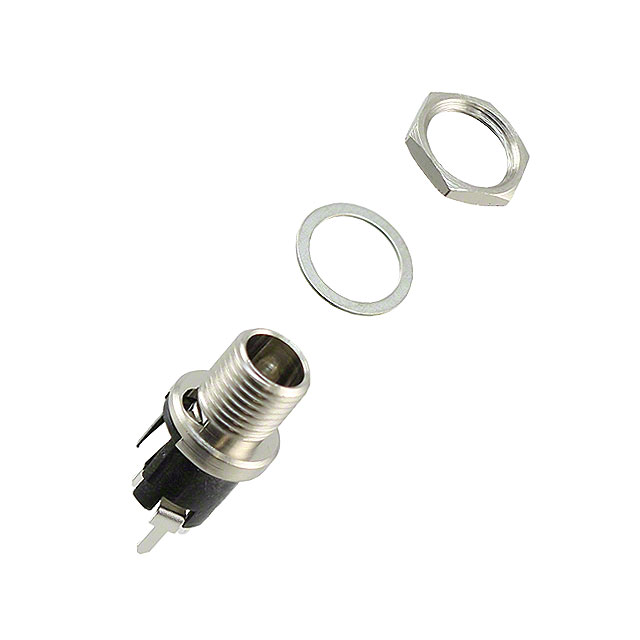

PCL722A

Active

Switchcraft Inc.

CONN POWER JACK SOLDER EYELET

Search across all available documentation for this part.

Connectors, Interconnects

Active

Switchcraft Inc.

CONN POWER JACK SOLDER EYELET

Technical Specifications

Parameters and characteristics for this part

Specification	PCL722A

Body Color	Silver, Black
Body Material	Copper Alloy
Connector Type	Jack
Contact Material	Copper Alloy
Contact Material - Plating [custom]	Silver
Current Rating (Amps)	5 A
Features	Thread Lock, Mounting Hardware
Gender	Male
Housing Material	Thermoplastic
Includes	1 Washer, 1 O-Ring, 1 Nut, 1 Connector
Internal Switch(s)	Single Switch, Normally Closed
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole
Number of Positions/Contacts	3 Conductors, 2 Conductors
Shielding	Unshielded
Termination	Solder Eyelet(s)
Thread Size	5/16"-32
Voltage - Rated [custom]	48 VDC

Part	Body Material	Internal Switch(s)	Contact Material - Plating [custom]	Mounting Feature	Gender	Connector Type	Voltage - Rated	Ingress Protection	Shielding	Contact Material	Body Color	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Termination	Includes	Thread Size	Number of Positions/Contacts	Mounting Type	Features	Actual Diameter	Actual Diameter	Housing Material	Current Rating (Amps)	Voltage - Rated [custom]
Switchcraft Inc. PCL722AS	Copper Alloy	Normally Closed Single Switch	Silver	Bulkhead - Front Side Nut	Male	Jack	30 V	IP68	Unshielded	Copper Alloy	Black Silver	0.079 in 0.217 "	2 mm 5.5 mm	Solder	1 Connector 1 Nut 1 O-Ring 1 Washer	7/16"-32	2 Conductors 3 Conductors	Panel Mount Through Hole	Mounting Hardware Thread Lock	0.079 "	2 mm	Thermoplastic	5 A
Switchcraft Inc. PCL722A	Copper Alloy	Normally Closed Single Switch	Silver	Bulkhead - Front Side Nut	Male	Jack			Unshielded	Copper Alloy	Black Silver			Solder Eyelet(s)	1 Connector 1 Nut 1 O-Ring 1 Washer	5/16"-32	2 Conductors 3 Conductors	Through Hole	Mounting Hardware Thread Lock			Thermoplastic	5 A	48 VDC
