Capacitors

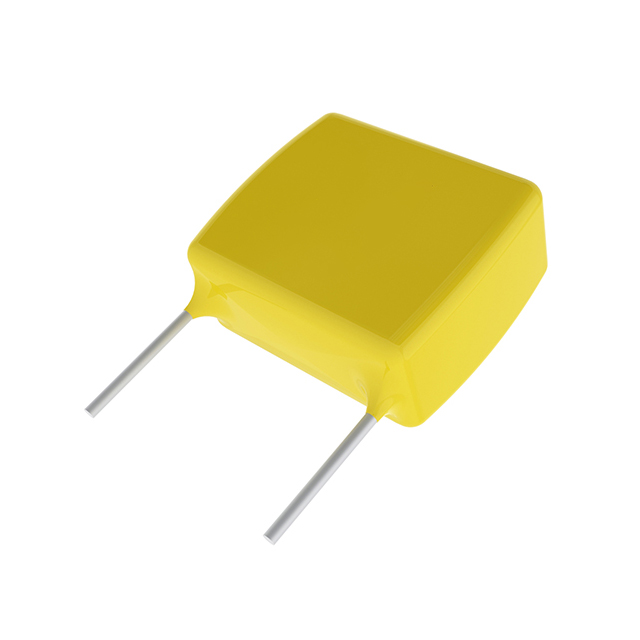

C326C155M5N5TA9170
ActiveKEMET
CAP CER 1.5UF 50V X8L RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
Capacitors
C326C155M5N5TA9170
ActiveKEMET
CAP CER 1.5UF 50V X8L RADIAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C326C155M5N5TA9170 |
|---|---|
| Applications | Automotive |
| Capacitance | 1.5 µF |
| Features | High Temperature |
| Height - Seated (Max) [Max] | 0.3 in |
| Height - Seated (Max) [Max] | 7.62 mm |
| Lead Spacing | 0.1 in |
| Lead Spacing | 2.54 mm |
| Lead Style | Formed Leads - Kinked |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial |
| Ratings | AEC-Q200 |
| Size / Dimension [x] | 0.2 in |
| Size / Dimension [x] | 5.08 mm |
| Size / Dimension [y] | 0.125 in |
| Size / Dimension [y] | 3.18 mm |
| Temperature Coefficient | X8L |
| Tolerance | 20 % |
| Voltage - Rated | 50 VDC |
C326C Series
...
| Part | Tolerance | Mounting Type | Capacitance | Package / Case | Voltage - Rated | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Applications | Lead Style | Operating Temperature [Min] | Operating Temperature [Max] | Temperature Coefficient | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Lead Spacing | Lead Spacing | Features | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 0.5 pF | Through Hole | 4.7 pF | Radial | 25 VDC | 0.2 in | 0.125 in | 5.08 mm | 3.18 mm | General Purpose | Formed Leads - Kinked | -55 °C | 125 °C | C0G NP0 | 0.3 in | 7.62 mm | 0.1 in | 2.54 mm | Low ESL | |
KEMET | 10 % | Through Hole | 100000 pF | Radial | 50 VDC | 0.2 in | 0.125 in | 5.08 mm | 3.18 mm | General Purpose | Formed Leads - Kinked | -55 °C | 125 °C | X7R | 0.3 in | 7.62 mm | 0.1 in | 2.54 mm | ||
KEMET | 2 % | Through Hole | 30 pF | Radial | 250 V | 0.2 in | 0.125 in | 5.08 mm | 3.18 mm | General Purpose | Formed Leads - Kinked | -55 °C | 125 °C | C0G NP0 | 0.3 in | 7.62 mm | 0.1 in | 2.54 mm | Low ESL | |
KEMET | 1 % | Through Hole | 7500 pF | Radial | 200 V | 0.2 in | 0.125 in | 5.08 mm | 3.18 mm | General Purpose | Formed Leads - Kinked | -55 °C | 125 °C | C0G NP0 | 0.3 in | 7.62 mm | 0.1 in | 2.54 mm | Low ESL | |
KEMET | 20 % | Through Hole | 1.5 µF | Radial | 50 VDC | 0.2 in | 0.125 in | 5.08 mm | 3.18 mm | Automotive | Formed Leads - Kinked | -55 °C | 150 °C | X8L | 0.3 in | 7.62 mm | 0.1 in | 2.54 mm | High Temperature | AEC-Q200 |
KEMET | 0.25 pF | Through Hole | 1.1 pF | Radial | 25 VDC | 0.2 in | 0.125 in | 5.08 mm | 3.18 mm | General Purpose | Formed Leads - Kinked | -55 °C | 125 °C | C0G NP0 | 0.3 in | 7.62 mm | 0.1 in | 2.54 mm | Low ESL | |
KEMET | 1 % | Through Hole | 27 pF | Radial | 250 V | 0.2 in | 0.125 in | 5.08 mm | 3.18 mm | General Purpose | Formed Leads - Kinked | -55 °C | 125 °C | C0G NP0 | 0.3 in | 7.62 mm | 0.1 in | 2.54 mm | Low ESL | |
KEMET | 10 % | Through Hole | 0.039 µF | Radial | 100 V | 0.2 in | 0.125 in | 5.08 mm | 3.18 mm | General Purpose | Formed Leads - Kinked | -55 °C | 125 °C | C0G NP0 | 0.3 in | 7.62 mm | 0.1 in | 2.54 mm | Low ESL | |
KEMET | 1 % | Through Hole | 62 pF | Radial | 25 VDC | 0.2 in | 0.125 in | 5.08 mm | 3.18 mm | General Purpose | Formed Leads - Kinked | -55 °C | 125 °C | C0G NP0 | 0.3 in | 7.62 mm | 0.1 in | 2.54 mm | Low ESL | |
KEMET | 1 % | Through Hole | 1500 pF | Radial | 25 VDC | 0.2 in | 0.125 in | 5.08 mm | 3.18 mm | General Purpose | Formed Leads - Kinked | -55 °C | 125 °C | C0G NP0 | 0.3 in | 7.62 mm | 0.1 in | 2.54 mm | Low ESL |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.26 | |
Description
General part information
C326C Series
1.5 µF ±20% 50V Ceramic Capacitor X8L Radial
