Technical Specifications
Parameters and characteristics for this part
| Specification | 0314-0-15-80-34-80-10-0 |
|---|---|
| Accepts Pin Diameter [Max] | 1.17 mm |
| Accepts Pin Diameter [Max] | 0.046 " |
| Accepts Pin Diameter [Min] | 0.81 mm |
| Accepts Pin Diameter [Min] | 0.032 " |
| Contact Finish | Tin |
| Contact Finish Thickness | 200 Áin |
| Contact Finish Thickness | 5.08 Ám |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 0.126 in |
| Flange Diameter [diameter] | 3.2 mm |
| Length - Overall [x] | 0.236 in |
| Length - Overall [x] | 6 mm |
| Mounting Hole Diameter [diameter] | 0.087 in |
| Mounting Hole Diameter [diameter] | 2.21 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 C |
| Pin Hole Diameter [diameter] | 1.63 mm |
| Pin Hole Diameter [diameter] | 0.064 in |
| Socket Depth | 5.99 mm |
| Socket Depth | 0.236 in |
| Tail Type | No Tail |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.30 | |
| 10 | $ 1.10 | |||
| 25 | $ 1.05 | |||
| 50 | $ 1.03 | |||
| 100 | $ 0.99 | |||
| 250 | $ 0.90 | |||
| 500 | $ 0.81 | |||
| 1000 | $ 0.72 | |||
| 3000 | $ 0.65 | |||
| N/A | 786 | $ 1.18 | ||
Description
General part information
0314-0 Series

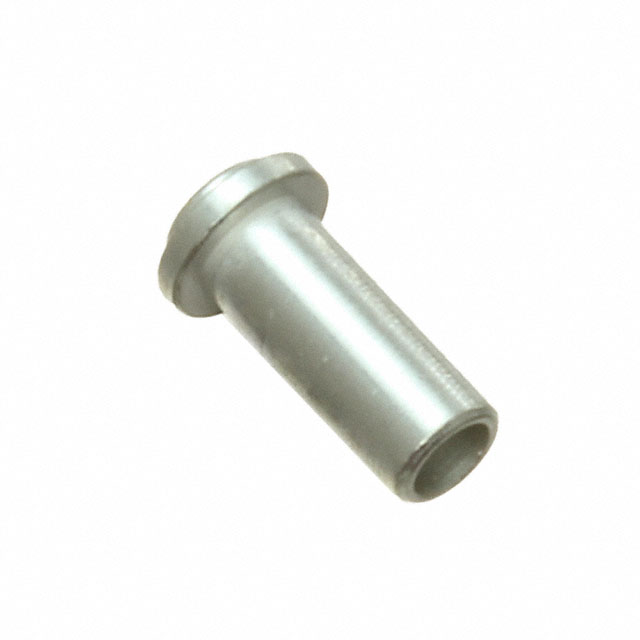

Pin Receptacle Connector 0.032" ~ 0.046" (0.81mm ~ 1.17mm) No Tail Solder
