Specification	1815WB 0101000

Cable Type	Multi-Pair
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	7
Features	Drain Wire, Water-Blocked, UV Resistant
Jacket (Insulation) Diameter [diameter]	10.59 mm
Jacket (Insulation) Diameter [diameter]	0.417 in
Jacket (Insulation) Material	High Density Polyethylene (HDPE)
Jacket (Insulation) Thickness	0.03 in
Jacket (Insulation) Thickness	0.762 mm
Jacket Color	Black
Length	304.8 m
Length	1000 ft
Number of Conductors	8
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 ░C
Shield Coverage	100 %
Shield Material	Aluminum, Polyester
Shield Type	Foil
Usage	Audio
Voltage	300 VDC
Wire Gauge	22 AWG

1815WB Series

Part	Shield Material	Shield Coverage	Wire Gauge	Usage	Conductor Material	Length	Length	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Cable Type	Shield Type	Features	Number of Conductors	Jacket (Insulation) Material
Belden Inc. 1815WB 0101000	Aluminum Polyester	100 %	22 AWG	Audio	Copper Tinned	304.8 m	1000 ft	30 AWG	7	10.59 mm	0.417 in	Black	Polypropylene (PP)	-20 ░C	60 °C	0.03 in	0.762 mm	300 VDC	Multi-Pair	Foil	Drain Wire UV Resistant Water-Blocked	8	High Density Polyethylene (HDPE)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

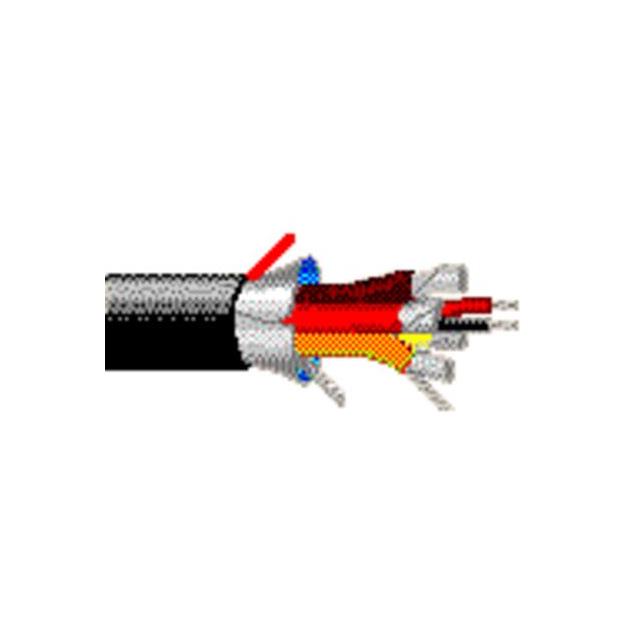

8 (4 Pair) Conductor Multi-Pair Cable Black 22 AWG Foil 1000.0' (304.8m)
