Circuit Protection

3410.0035.03

Active

SCHURTER Inc.

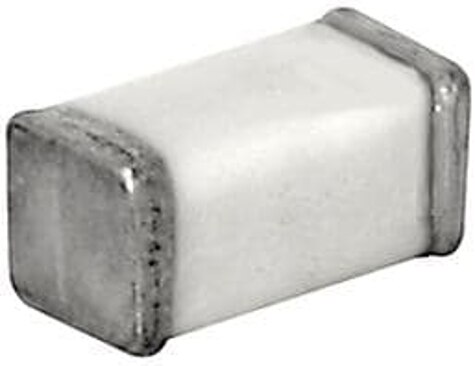

"MGA, 2 A, 125 VDC, 125 VAC, SUPER-QUICK-ACTING FF, BLISTER TAPE 33 CM REEL PCS., FUSE, SMT, 3.2 X 1.6 MM\/

Search across all available documentation for this part.

Circuit Protection

Active

SCHURTER Inc.

"MGA, 2 A, 125 VDC, 125 VAC, SUPER-QUICK-ACTING FF, BLISTER TAPE 33 CM REEL PCS., FUSE, SMT, 3.2 X 1.6 MM\/

Technical Specifications

Parameters and characteristics for this part

Specification	3410.0035.03

Breaking Capacity @ Rated Voltage	300 A, 50 A
Current Rating (Amps)	2 A
DC Cold Resistance	0.039 Ohms
Fuse Type	Board Mount
Melting I˛t	0.089
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	2-SMD, Square End Block
Response Time	Fast Blow
Size / Dimension [x]	0.126 in
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	1.55 mm
Size / Dimension [y]	0.061 in
Size / Dimension [z]	1.55 mm
Size / Dimension [z]	0.061 "
Voltage Rating - AC	125 V
Voltage Rating - DC	125 VDC

Power Inductors - SMD PWRIND,SMT,Shld,IRated 5.00x5.00x2.00mm

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Current Rating (Amps)	Fuse Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage Rating - DC	Package / Case	Response Time	DC Cold Resistance	Melting I²t	Breaking Capacity @ Rated Voltage	Melting I˛t
SCHURTER Inc. 3410.0035.01	Surface Mount	-55 °C	150 °C	125 V	2 A	Board Mount	1.55 mm	1.55 mm	0.126 in	0.061 in	0.061 "	3.2 mm	125 VDC	2-SMD Square End Block	Fast Blow	0.039 Ohms	0.089	50 A 300 A
SCHURTER Inc. 3410.0035.04	Surface Mount	-55 °C	150 °C	125 V	2 A	Board Mount	1.55 mm	1.55 mm	0.126 in	0.061 in	0.061 "	3.2 mm	125 VDC	2-SMD Square End Block	Fast Blow	0.039 Ohms		50 A 300 A	0.089
SCHURTER Inc. 3410.0035.03	Surface Mount	-55 °C	150 °C	125 V	2 A	Board Mount	1.55 mm	1.55 mm	0.126 in	0.061 in	0.061 "	3.2 mm	125 VDC	2-SMD Square End Block	Fast Blow	0.039 Ohms		50 A 300 A	0.089
SCHURTER Inc. 3410.0035.02	Surface Mount	-55 °C	150 °C	125 V	2 A	Board Mount	1.55 mm	1.55 mm	0.126 in	0.061 in	0.061 "	3.2 mm	125 VDC	2-SMD Square End Block	Fast Blow	0.039 Ohms	0.089	50 A 300 A
