CMSH2-60 BK PBFREE

Active

SCHOTTKY DIODES & RECTIFIERS SMB 2A 60V SMD SHTKY RECTIFIER SCHOTTKY

Search across all available documentation for this part.

Discrete Semiconductor Products

Active

SCHOTTKY DIODES & RECTIFIERS SMB 2A 60V SMD SHTKY RECTIFIER SCHOTTKY

Technical Specifications

Parameters and characteristics for this part

Specification	CMSH2-60 BK PBFREE

Capacitance @ Vr, F	84 pF
Current - Average Rectified (Io)	2 A
Current - Reverse Leakage @ Vr	500 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-65 C

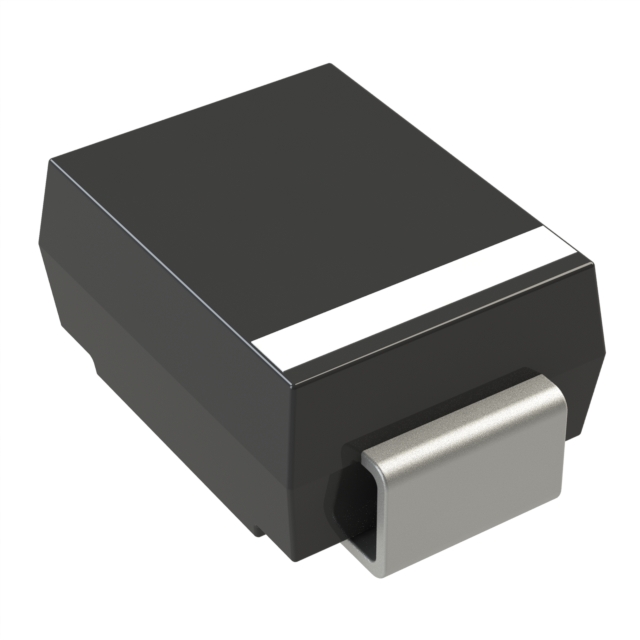

Package / Case	SMB, DO-214AA
Speed	500 ns, 200 mA
Supplier Device Package	SMB
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	60 V
Voltage - Forward (Vf) (Max) @ If	700 mV

Part	Capacitance @ Vr, F	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io)	Supplier Device Package	Technology	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Package / Case	Speed
Central Semiconductor Corp CMSH2-20L TR13 PBFREE	150 pF	Surface Mount	20 V	150 °C	-65 C	2 A	SMB	Schottky	400 mV	500 µA	DO-214AA SMB	200 mA 500 ns
Central Semiconductor Corp CMSH2-100 TR13 PBFREE	120 pF	Surface Mount	100 V	150 °C	-65 C	2 A	SMB	Schottky	850 mV	500 µA	DO-214AA SMB	200 mA 500 ns
Central Semiconductor Corp CMSH2-20 BK PBFREE	236 pF	Surface Mount	20 V	150 °C	-65 C	2 A	SMB	Schottky	500 mV	500 µA	DO-214AA SMB	200 mA 500 ns
Central Semiconductor Corp CMSH2-60 BK PBFREE	84 pF	Surface Mount	60 V	150 °C	-65 C	2 A	SMB	Schottky	700 mV	500 µA	DO-214AA SMB	200 mA 500 ns
Central Semiconductor Corp CMSH2-20L BK PBFREE	386 pF	Surface Mount	20 V	150 °C	-65 C	2 A	SMB	Schottky	400 mV	500 µA	DO-214AA SMB	200 mA 500 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2000	$ 0.47
	N/A	0	$ 0.47
Mouser	N/A	2000	$ 0.47
		2500	$ 0.46
		5000	$ 0.43

General part information

Diode 60 V 2A Surface Mount SMB
